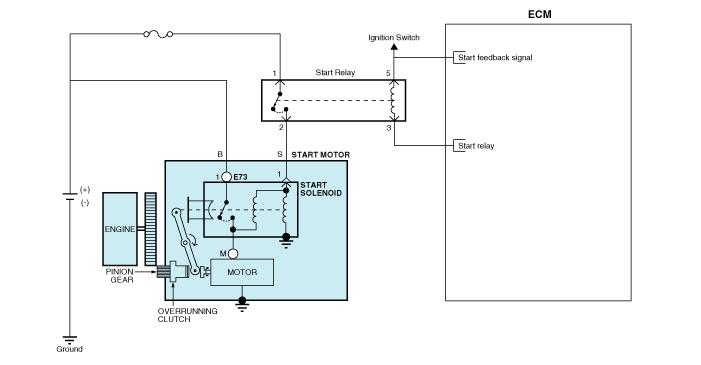

Kia Rio: Starter: Circuit Diagram

Starter: Components

1. Screw 2. Front housing 3. Stop ring 4. Stopper 5. Overunn clutch 6. Lever 7. Lever plate 8. Lever packing 9. Magnet switch assembly 10. Armature assemb ...

Starter: Removal

1. Disconnect the battery negative terminal. 2. Remove the air duct and air cleaner assembly. (Refer to Engine Mechanical System - &quo ...
