Kia Rio: TPMS Sensor Diagnosis procedure by using diagnostic device

As manual for diagnosis methods by using diagnosis device, the main contents are as follows:

1.	Connect self-diagnosis connector(16pins) located in the lower of driver side crash pad to self-diagnosis device, and then turn the self-diagnosis device after key is ON.

2.	Select the "vehicle model" and "TPMS" on GDS vehicle selection screen, then select OK.

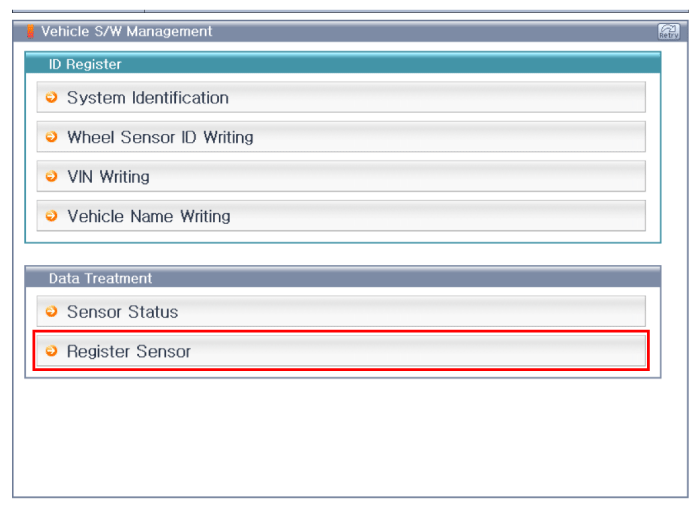

[Register Sensor initialization]

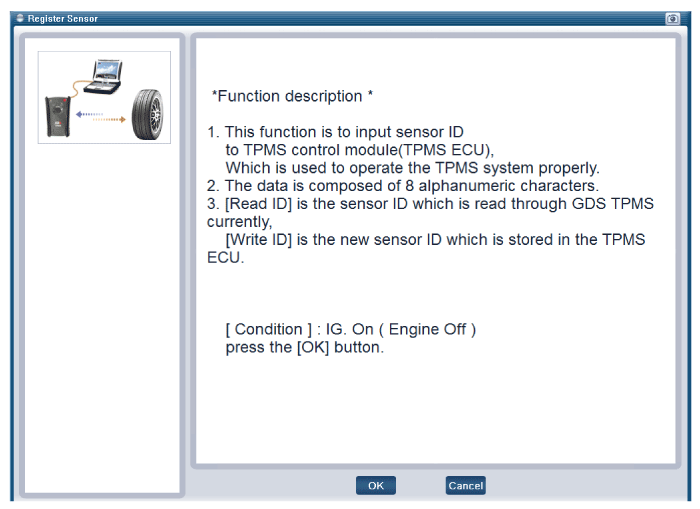

[Register Sensor function description]

[Preparation phase sensor measurements]

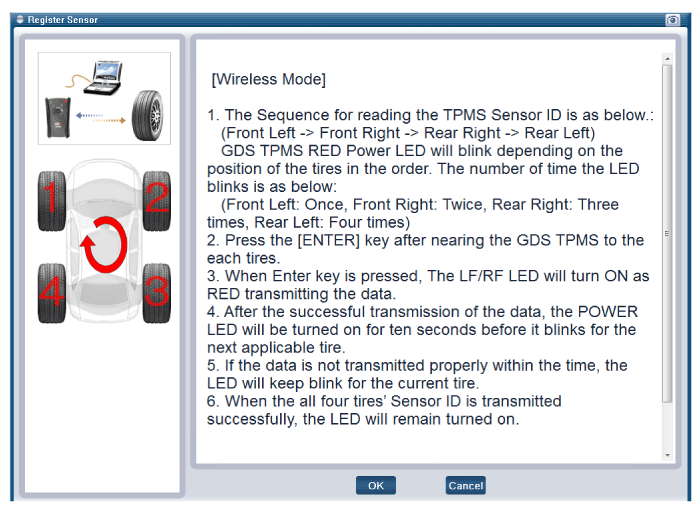

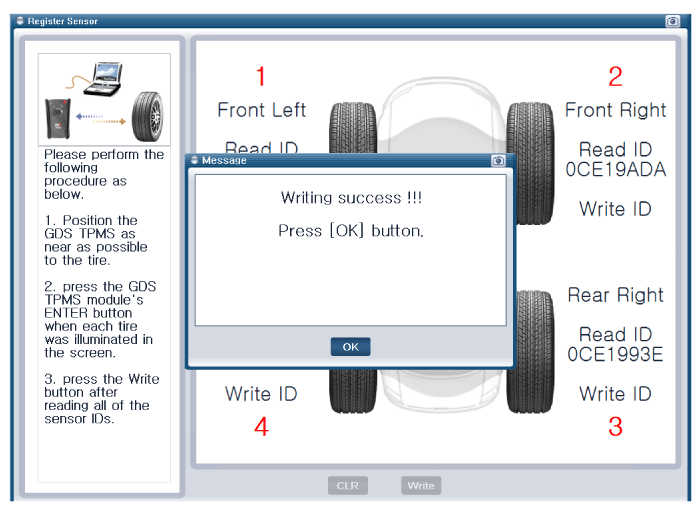

[Sensor register method 1]

[Sensor register method 2]

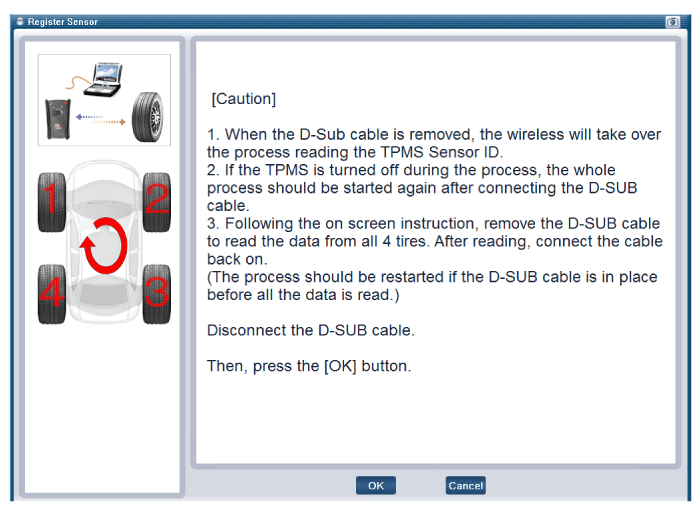

[Sensor register method 3]

[Sensor register method 4]

[Sensor register method 5]

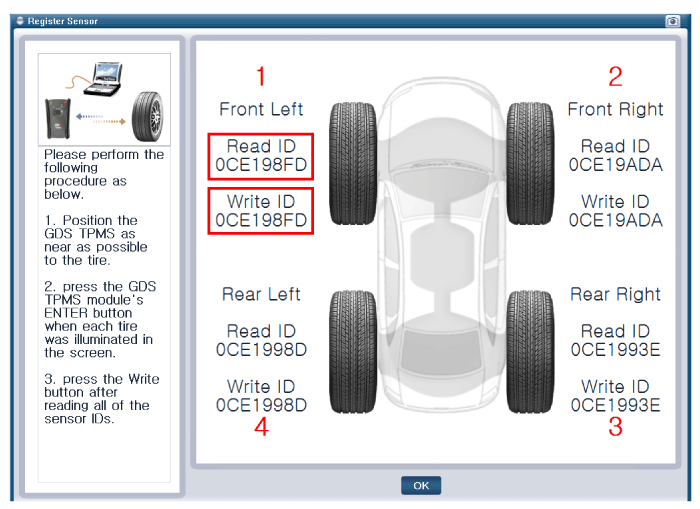

•	Write ID Read ID and be sure to check are the same.

•	After registering successfully sensor "Sensor Wireless Information" by the execution determines whether the sensor is working properly.

[Sensor Status initialization]

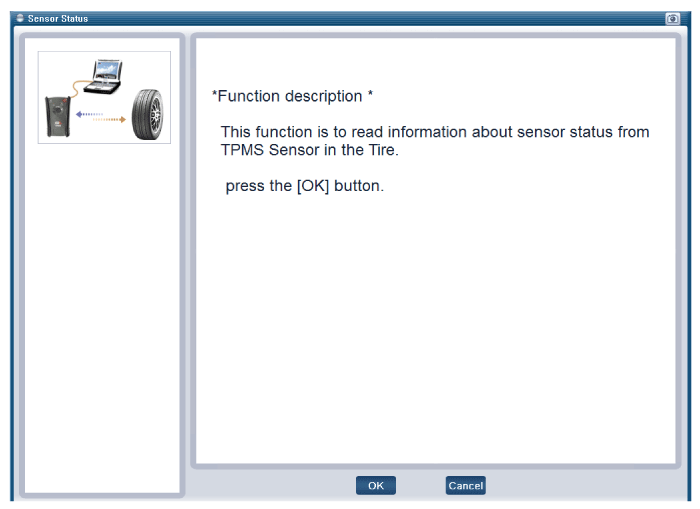

[Sensor function description]

[Preparation phase sensor measurements]

•	In North America, the cable is measured separately.

•	In Domestic/General(European) area, the cable is measured without separation.

[Sensor measurements 1]

[Sensor measurements 2]

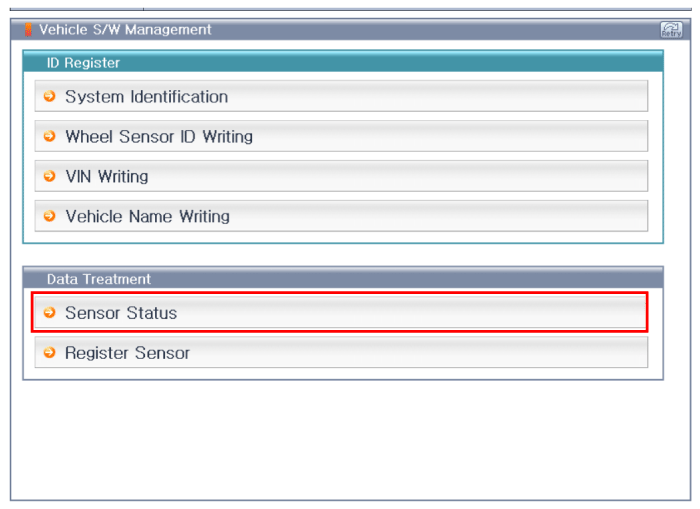

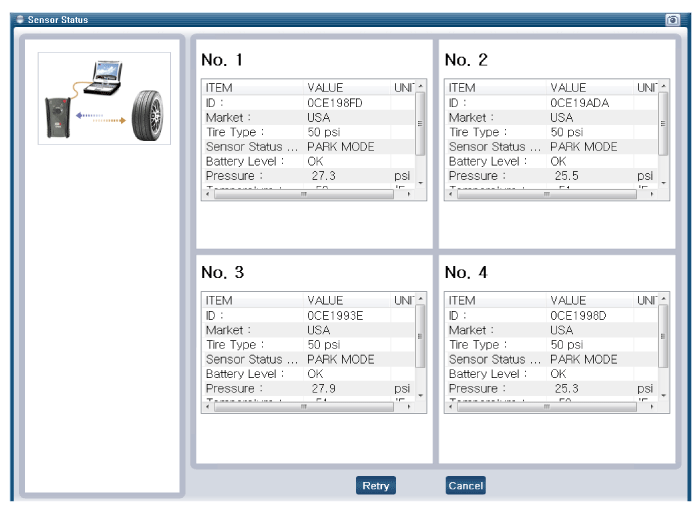

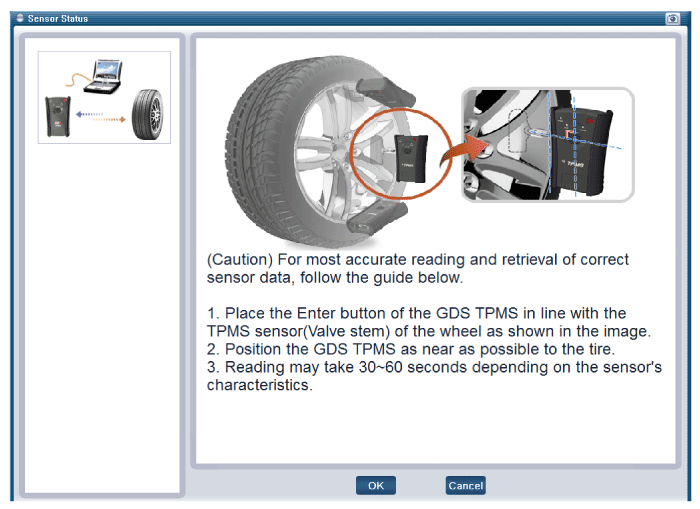

[Sensor Status]

•	Each entry must check whether each sensor normal.

•	After replacing the tires or sensors, check the status of sensor is working properly after sensor registration process.
