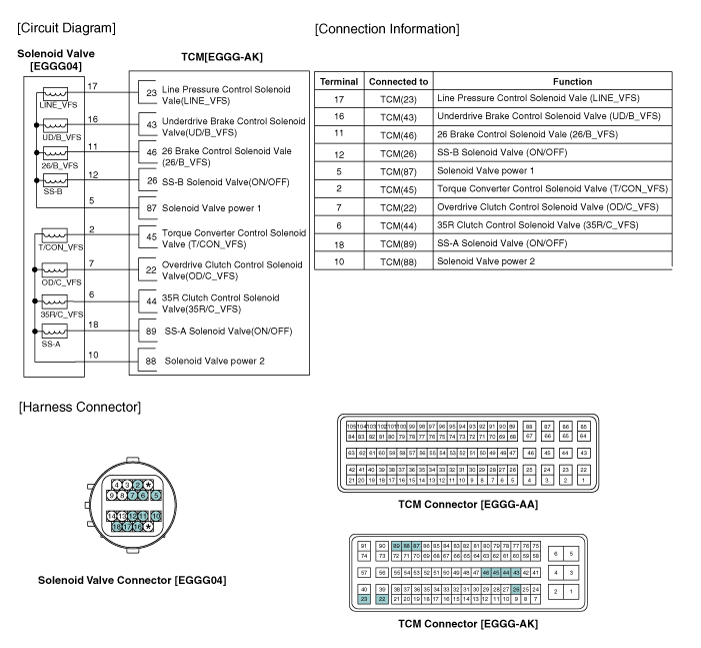

Kia Rio: Underdrive Brake Control Solenoid Valve(UD/B_VFS) Circuit Diagram

Underdrive Brake Control Solenoid Valve(UD/B_VFS) Specifications

Direct control VFS[35R/C] ▷ Control type : Normal low type Control Pressure kpa (kgf/cm², psi) 500.14 ~ 9.81 (5.1 ~ 0.1,72.54 ~ 1.42) Current value(mA ...

Underdrive Brake Control Solenoid Valve(UD/B_VFS) Inspection

1. Turn ignition switch OFF. 2. Disconnect the solenoid valve connector. 3. Measure resistance between sensor ...
