Kia Cee'd: Cylinder Block / Components and components location
Kia Cee'd JD Service Manual / Engine Mechanical System / Cylinder Block / Components and components location
| Components |

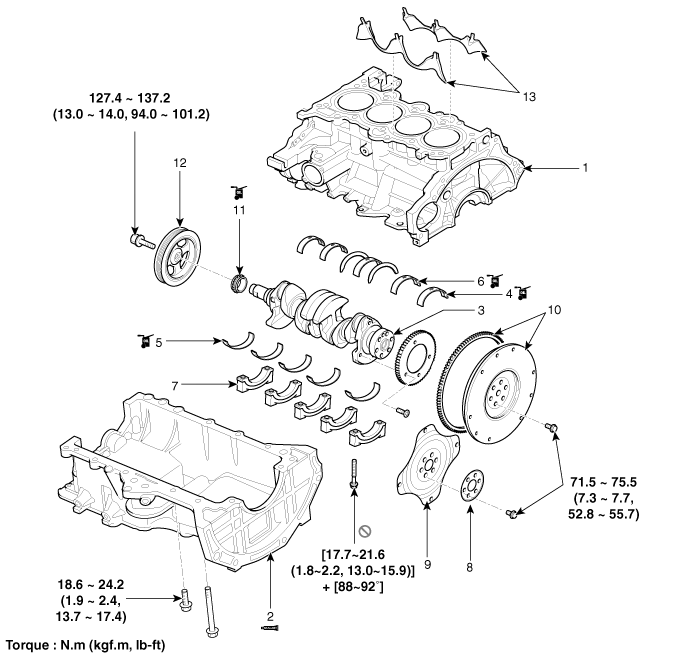

| 1. Cylinder block 2. Ladder frame 3. Crankshaft 4. Crankshaft upper bearing |
5. Crankshaft lower bearing
6. Thrust bearing 7. Main bearing cap 8. Adapter plate |
9. Drive plate 10. Fly wheel 11. Crankshaft sproket 12. Crankshaft pulley 13. Water jacket insert |

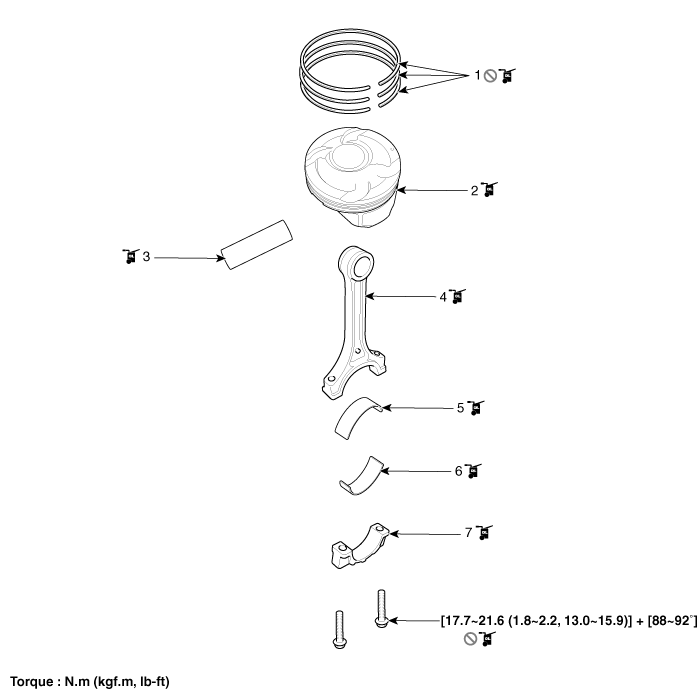

| 1. Piston ring 2. Piston 3. Piston pin 4. Connecting rod |
5. Connecting rod upper bearing
6. Connecting rod lower bearing 7. Connecting rod bearing cap |
Cylinder Block
...
External Damper Flywheel Components and components location
Components
1. External damper flywheel
...
