Kia Cee'd: Cylinder Block / External Damper Flywheel Components and components location
Kia Cee'd JD Service Manual / Engine Mechanical System / Cylinder Block / External Damper Flywheel Components and components location

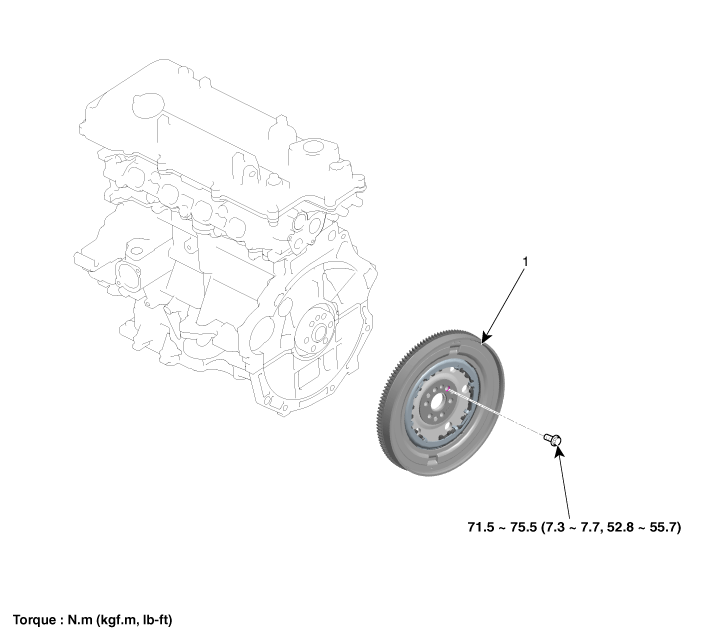

| Components |
| 1. External damper flywheel
|
Components and components location
Components
1. Cylinder block
2. Ladder frame
3. Crankshaft
4. Crankshaft upper bearing
5. Crankshaft lower bearing
6. Thrust bearing
7. ...
External Damper Flywheel Repair procedures
Removal and installation
1.
Remove the dual clutch transmission.
(Refer to Dual Clutch Transmisson(DCT) - "Dual Clutch Transmisson Assembly")
...
