Kia Cee'd: Tires/Wheels / Wheel Repair procedures
| Hub nut tightening sequence |
Tighten the hub nuts as follows.
|
Tightening torque:
88.3 ~ 107.9N.m (9.0 ~ 11.0kgf.m, 65.1 ~ 79.6lb-ft)
|
When using an impact gun, final tightening torque should be checked
using a torque wrench.
|
Run out inspection
| 1. |
Jack up the vehicle.
|
| 2. |

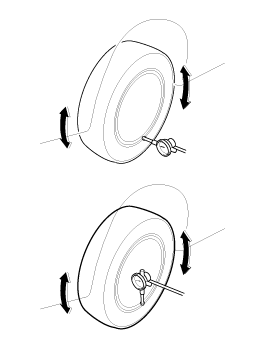

Measure the wheel Run-out by using a dial indicator as illustration
below.
|
| 3. |
If measured value exceeds the standard value, replace the wheel.
|
Tire Repair procedures
•
Using tires and wheel other than the recommended sizes could
cause unusual handling chara ...
Alignment Repair procedures
Front wheel alignment
When using a commercially available computerized wheel alignment equipment
to inspect ...
Kia Cee'd JD Service Manual: Components and components location
Components (1)
[General Type]
(5Door)
1. Roof trim
2. Sunvisor [LH]
3. Sunvisor [RH]
4. Retainer
5. Assist handle bracket
Components (2)
[Panoramaroof Type]
(5Door)
...
Kia Cee'd JD Service Manual: Components and components location
Components
1. Union bolt
2. Gasket
3. Tube joint
4. Clutch tube
5. Valve plate
6. Valve spring
7. Bleeder screw
8. Release cylinder
9. Return spring
10. Piston
11. Boot
12. Push rod
...
