Kia Cee'd: Instrument cluster (Super vision) / Instrument panel illumination

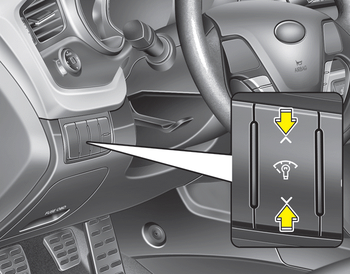

The instrument panel illumination intensity can be adjusted as follows:
- Ignition switch in the ON position
- Pressing the upper or lower part of the switch
The illumination intensity is shown on the instrument cluster LCD display.
Instrument cluster (Super vision)
■ Type A
1. Tachometer
2. Speedometer
3. Fuel gauge
4.Warning and indicator lights (if equipped)
5. Turn signal indicators
6. LCD display
■ Type B (for T-GDI engine) • Analog Mode
...
Gauges
...
