| Inspection |
| 1. |

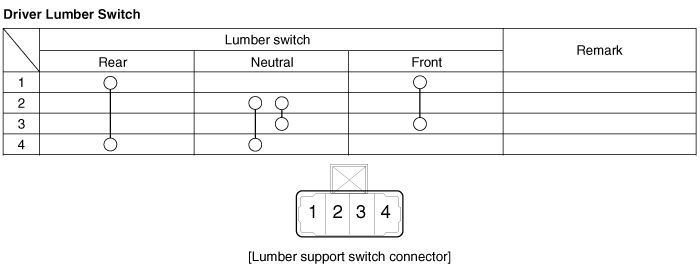

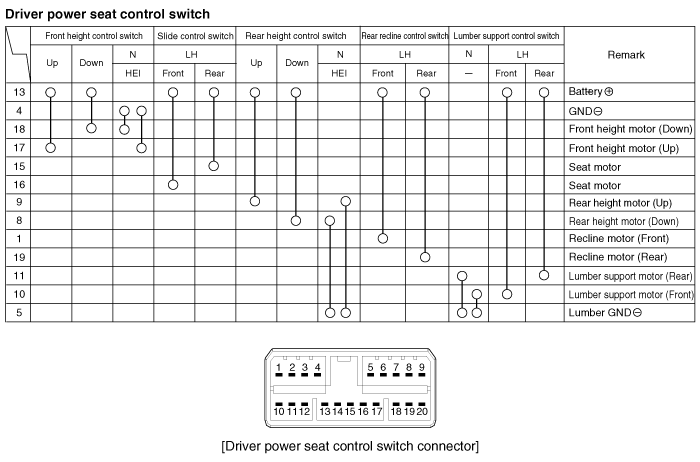

With the power seat switch in each position, make sure that continuity
exists between the terminals below. If continuity is not as specified,
replace the power seat switch.
A : Power seat control switch
B : Lumbar support switch
|
| Removal |
| 1. |
Disconnect the negative (-) battery terminal.
|
| 2. |
Remove the front seat shield outer cover (A).
(Refer to Body - "Front Seat Shield Outer Cover")
|
| 3. |
Disconnect the power seat control switch connector (A).
|
| 4. |
Remove the power seat control switch (A) after loosening the mounting
screws.
|
| Installation |
| 1. |
Connect the connector and install the power seat control switch.
|
| 2. |
Install the front seat shield outer cover.
|
Power Seat Control Switch Schematic diagrams
Circuit Diagram
...
Seat Heater Switch Schematic diagrams
Circuit Diagram
[LHD]
[RHD]
...
