Kia Cee'd: Seat Electrical / Seat Heater Switch Schematic diagrams

Kia Cee'd JD Service Manual / Body Electrical System / Seat Electrical / Seat Heater Switch Schematic diagrams

Circuit Diagram

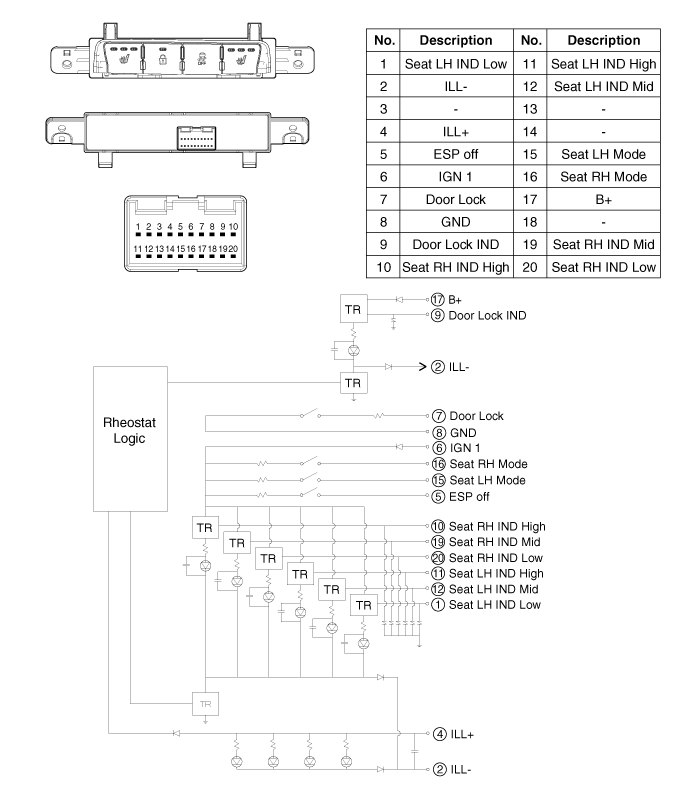

[LHD]

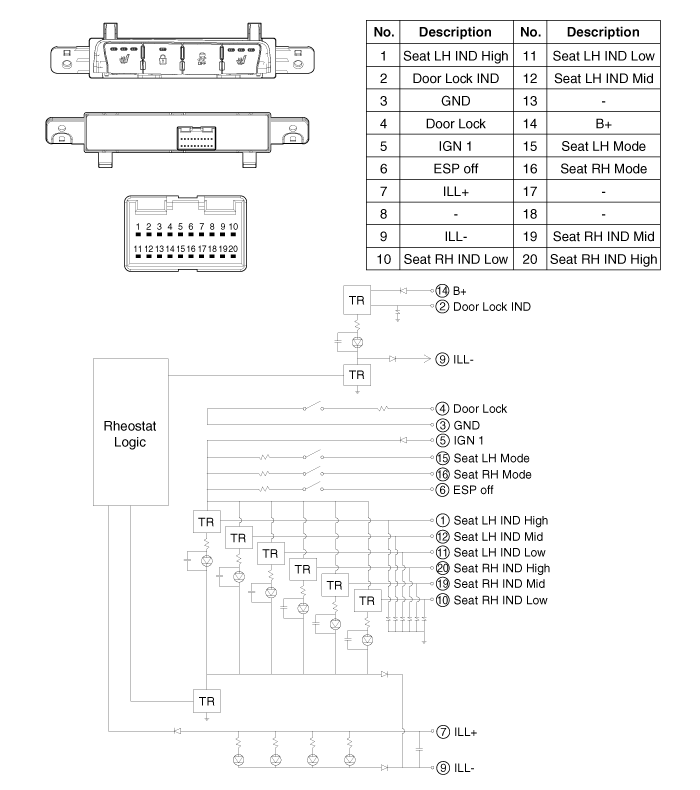

[RHD]
