Kia Cee'd: Seat Electrical / Power Seat Control Switch Schematic diagrams
Kia Cee'd JD Service Manual / Body Electrical System / Seat Electrical / Power Seat Control Switch Schematic diagrams

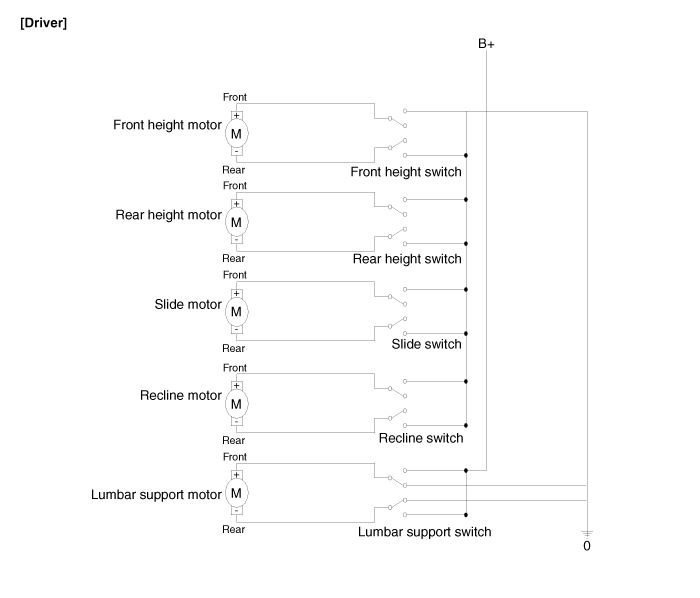

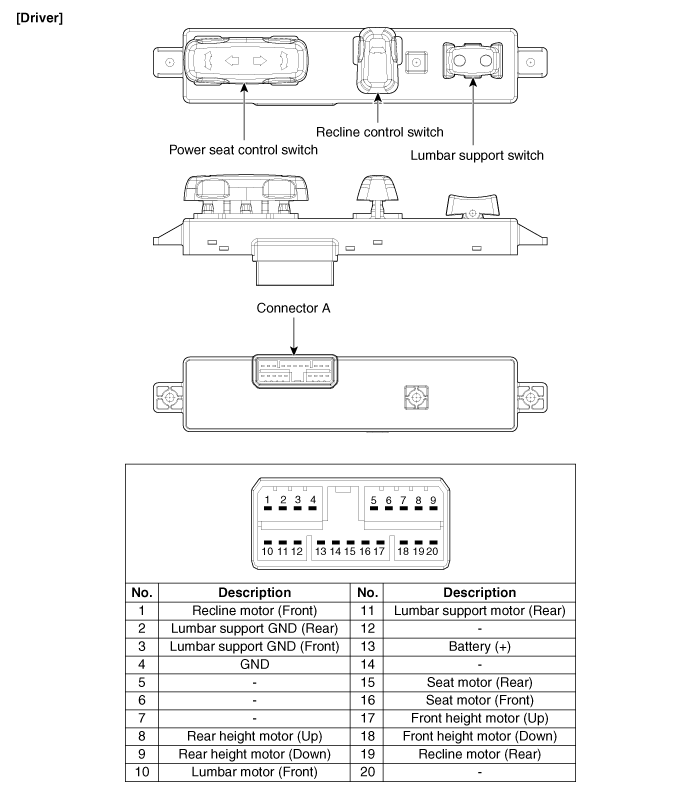

| Circuit Diagram |
Power Seat Motor Repair procedures
Inspection
Power Seat Motor
1.
Remove the seat and all motor connectors.
A : Slide motor
D : Recline motor
...
Power Seat Control Switch Repair procedures
Inspection
1.
With the power seat switch in each position, make sure that continuity
exists between the terminals below. If continuity is not as specified,
r ...
