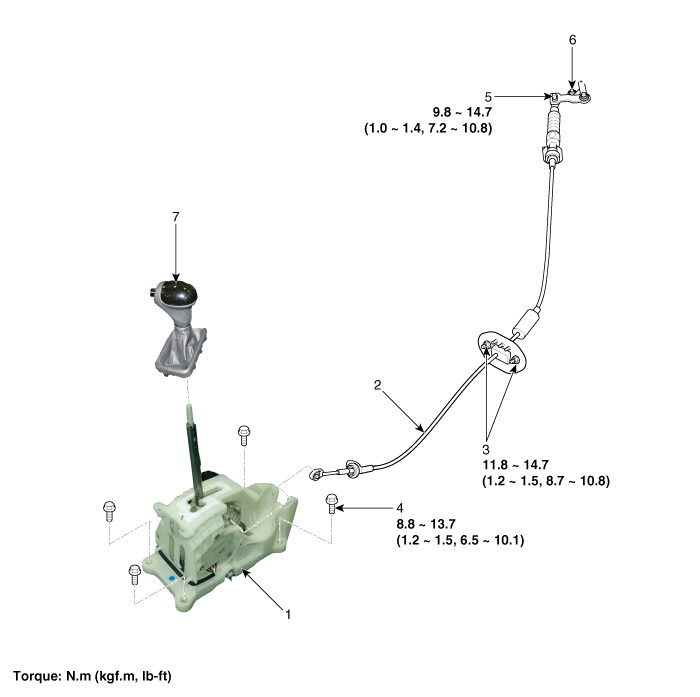

| Components |
| 1. Shift lever assembly
2. Shift cable assembly 3. Retainer 4. Bolt |
5. Nut 6. Manual control lever 7. Knob |
Shift Lever Repair procedures
Removal
1.
Remove the floor console assembly.
(Refer to Body - "Floor Console")
2.
Remove the air duct.
...
Shift Cable Repair procedures
Removal
1.
Remove the floor console assembly.
(Refer to Body - "Floor Console")
2.
Remove the air duct.
...
