Kia Cee'd: Cargo security screen (wagon) / To remove the cargo security screen

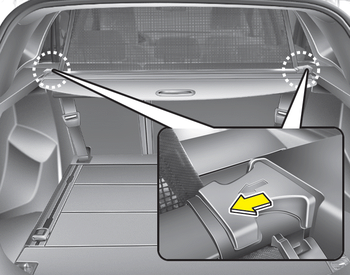

1. Push the guide pin inward.
2. While pushing the guide pin, pull out the cargo security screen.
WARNING
- Do not place objects on the cargo security screen. Such objects may be thrown about inside the vehicle and possibly injure vehicle occupants during an accident or when braking.
- Never allow anyone to ride in the luggage compartment. It is designed for luggage only.
- Maintain the balance of the vehicle and locate the weight as forward as possible.
CAUTION
Since the cargo security screen may be damaged or malformed, do not put luggage on it when it is used.
To use the cargo security screen
1. Pull the cargo security screen towards
the rear of the vehicle by the handle
(1).
2. Insert the guide pin into the guide (2).
✽ NOTICE
Pull out the cargo security screen with
the handl ...
Luggage rail system (wagon)
The luggage rail system may prevent the
luggage from sliding around in the luggage
compartment. ...
