Kia Rio: Roof Trim / Assist Handle
Components and components location
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |

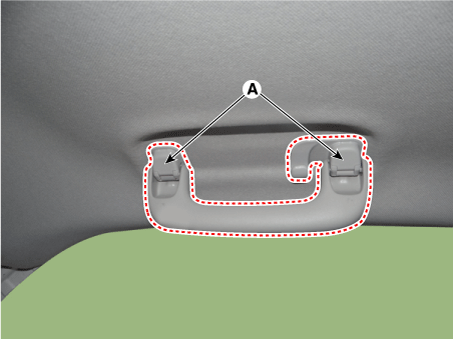

Remove the caps (A) and screws, then remove the assist handle (B).
|
| 2. |
Install in the reverse order of removal.
|
Components and components location

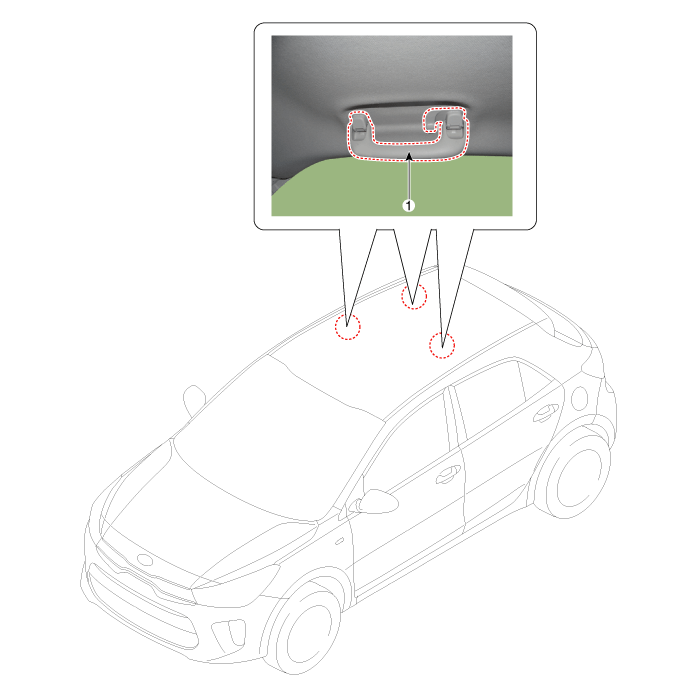

Component Location
1. Sunvisor
2. Retainer
Repair procedures
Replacement
& ...
Components and components location
Component Location
1. Roof Trim Assembly
Repair procedures
Replacement
