Kia Rio: Manual Transaxle System / Back-up Lamp Switch
Specifications
| Specifications |
|
Item |
Specified |
|
Type |
ON/OFF |
|
Operating condition |
Reverse gear |
|
Operating voltage |
10V - 15V |
|
Operating temperatures |
-30°C to 100°C [-30°F to 212°F]" |
Components and components location

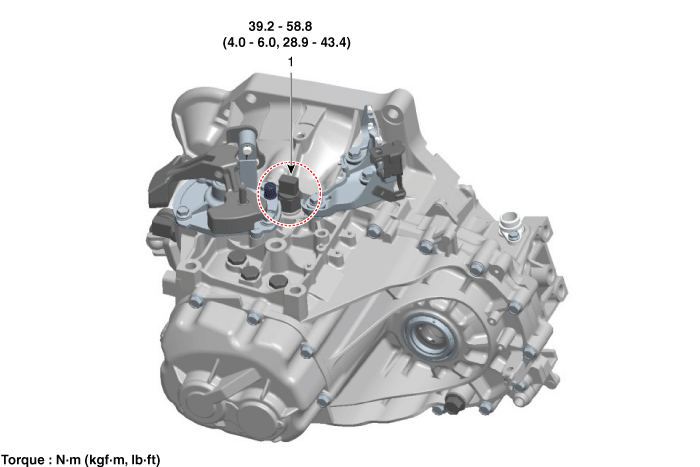

| Component Location |
| 1. Back-up
lamp switch |
Description and operation
| Description |
| • |
Detects the shift operation to the reverse gear. |
| • |

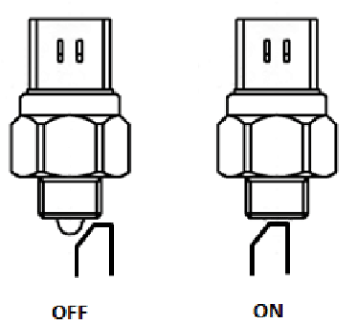

When the transaxle is in the reverse condition, the reverse shift rug turns the back-up lamp switch onby pressing a shaft part of the switch.
|
Repair procedures
| Inspection |
| 1. |
Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Cleaner") |
| 2. |
Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") |
| 3. |
Disconnect the back up lamp switch connector (A).
|
| 4. |

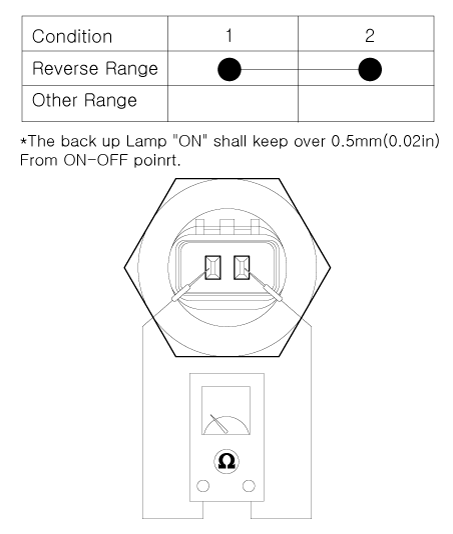

Check the continuity between power terminal and signal terminal.
|
| Removal |
| 1. |
Remove the air cleaner assembly. (Refer to Engine Mechanical System - "Air Cleaner") |
| 2. |
Remove the battery and battery tray. (Refer to Engine Electrical System - "Battery") |
| 3. |

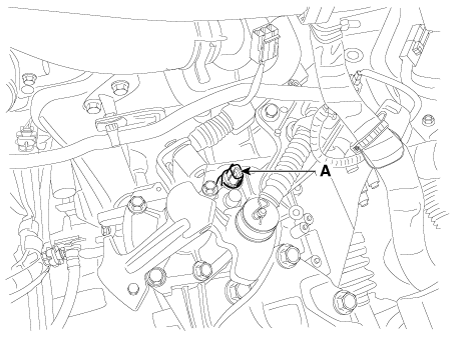

Disconnect the back-up lamp switch connector (A).
|
| 4. |
Remove the back up lamp switch (A).
|
| Installation |
| 1. |
Install in the reverse order of removal. |
The back-up lamp switch must be replaced with new one. (Do not reuse it.) |
Manual Transaxle
Components and components location
Components
1. Control shaft complete
2. Control cable bracket
3. Transaxle support bracket
4. Roll rod bracket
...
Neutral Switch
Specifications
Specifications
Item
Specified
Type
ON / OFF
Operating condition
Neutral gear
...
