Kia Rio: Cooling System / Radiator
Components and components location
| Components |
| 1. Radiator 2. Radiator upper hose 3. Radiator lower hose 4. Filler neck assembly |
5. Radiator upper mounting bracket
[LH] 6. Radiator upper mounting bracket [RH] 7. Radiator lower mounting insulator [LH] 8. Radiator lower mounting insulator [RH] |
Repair procedures
| Removal and Installation |
| 1. |
Disconnect the battery negative terminal. |
| 2. |
Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "Engine Room Under Cover") |
| 3. |
Drain the coolant. (Refer to Cooling System - "Coolant") |
| 4. |

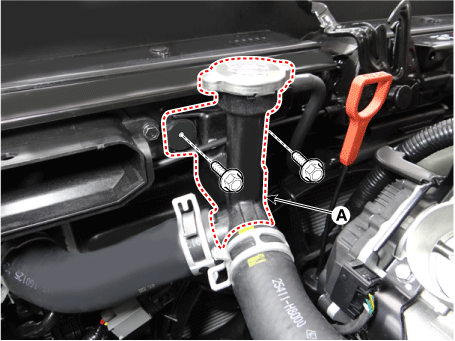

Separate the filler neck assembly (A).
|
| 5. |

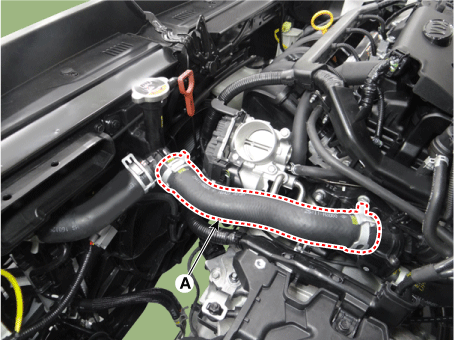

Disconnect the radiator upper hose (A).
|
| 6. |

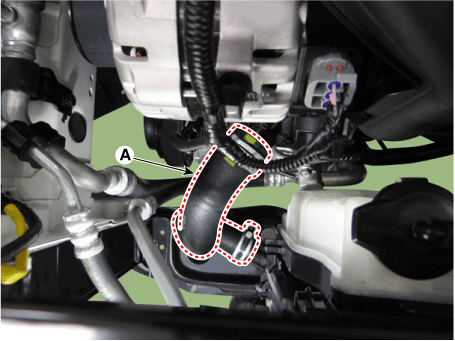

Disconnect the radiator lower hose (A).
|
| 7. |
Disconnect the ATF cooler hoses (A). (A/T only)
|
| 8. |
Remove the cooling fan assembly. (Refer to Cooling System - "Cooling Fan") |
| 9. |

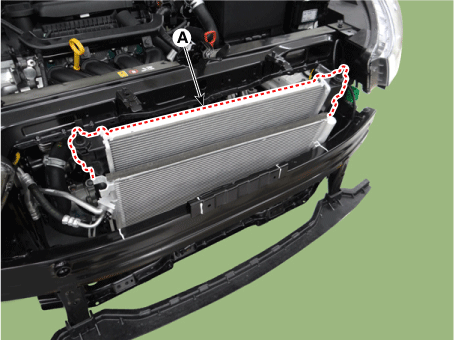

Separate the condenser and then remove the radiator (A).
|
| 10. |
Install in the reverse order of removal. |
| 11. |
Fill with engine coolant. (Refer to Cooling System - "Coolant") |
| 12. |
Start engine and check for leaks. |
| 13. |
Recheck engine coolant level. |
| Inspection |
Radiator Cap Testing
| 1. |

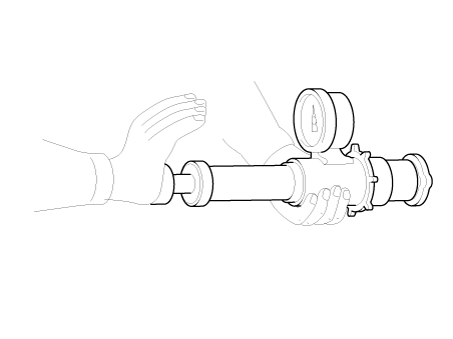

Remove the radiator cap, wet its seal with engine coolant, and then install it on a pressure tester.
|
| 2. |
Apply a pressure of 93.2 - 122.6 kPa (0.95-1.25 kgf/cm², 13.51-17.78 psi). |
| 3. |
Check for a drop in pressure. |
| 4. |
If the pressure drops, replace the cap. |
Radiator Leakage Test
| 1. |

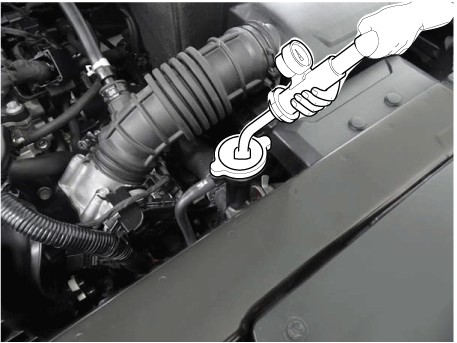

Wait until engine is cool, then carefully remove the radiator cap and fill the radiator with engine coolant, then install it on the pressure tester. |
| 2. |
Apply a pressure tester to the radiator and apply a pressure of 93.16 - 122.58 kPa (0.95 - 1.25 kgf/cm², 13.51 - 17.78 psi).
|
| 3. |
Inspect for engine coolant leaks and a drop in pressure. |
| 4. |
Remove the tester and reinstall the radiator cap.
|
Cooling Fan
Components and components location
Components
1. Cooling fan
3. Cooling fan shroud
2. Fan motor
4. Radiator
Specifications
Specification ...
Water Temperature Control Assembly
Repair procedures
Removal and Installation
1.
Remove the engine room under cover.
(Refer to Engine and Transaxle Assembly - "Engine Room Under cover")
...
