Kia Rio: Cooling System / Water Temperature Control Assembly
Repair procedures
| Removal and Installation |
| 1. |
Remove the engine room under cover. (Refer to Engine and Transaxle Assembly - "Engine Room Under cover") |
| 2. |
Drain the coolant. (Refer to Cooling System - "Coolant") |
| 3. |
Remove the air cleaner assembly. (Refer to Intake and Exhaust System - "Air Cleaner") |
| 4. |
Remove the battery. (Refer to Engine Electrical System - "Battery") |
| 5. |

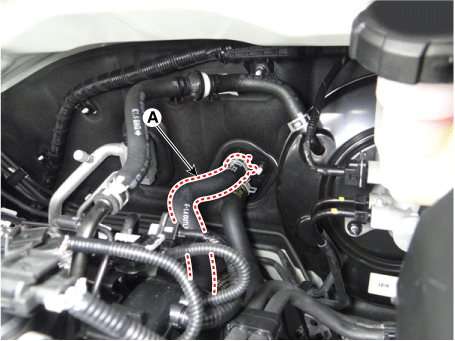

Disconnect the radiator upper hose (A).
|
| 6. |
Disconnect the heater hose (A).
|
| 7. |
Disconnect the coolant hose (A).
|
| 8. |
Disconnect the vacuum hose (A).
|
| 9. |

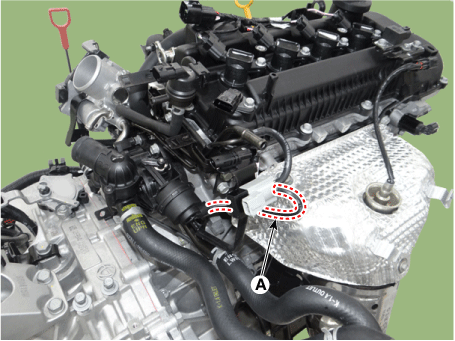

Disconnect the engine coolant temperature sensor (ECTS) connector (A).
|
| 10. |

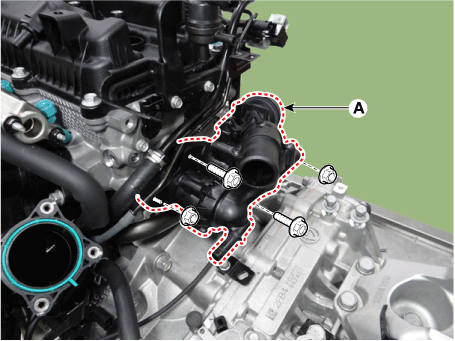

Remove the water temperature control assembly (A).
|
| 11. |
Install in the reverse order of removal. |
| 12. |
Fill the coolant. (Refer to Cooling System - "Coolant") |
| 13. |
Start the engine and check for leasks. |
| 14. |
Recheck the engine coolant level. |
