Kia Rio: Interior Trim / Center Pillar Trim
Components and components location
1. Center pillar lower trim
|
2. Center pillar upper trim
|
Repair procedures
[Center pillar lower
trim]
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
|
| 2. |
Carefully remove the front door body side weatherstrip.
|
| 3. |
Remove the seat belt (B) from the EFD system by using the SST (0K888-D4200).
|
| 4. |

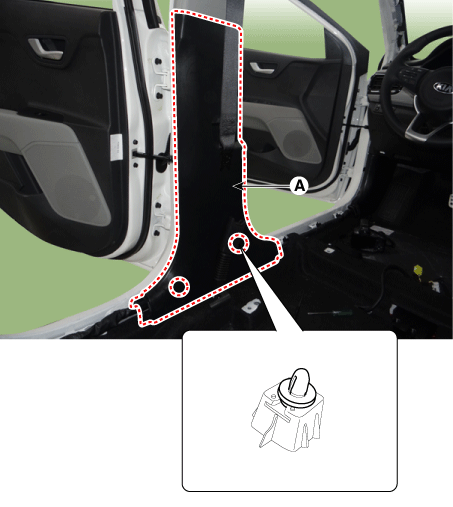

Using a remover, remove the center pillar lower trim (A).
|
| 5. |
Install in the reverse order of removal.
| •
|
Make sure that the connector is plugged in properly.
|
| •
|
Replace any damaged clips.
|
|
|
[Center pillar upper
trim]
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the center poller lower trim.
|
| 2. |

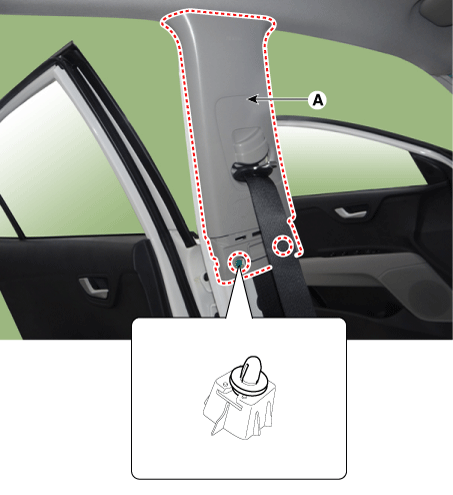

Remove the center pillar upper trim (A) after loosening the bolt.
|
| 3. |
Install in the reverse order of removal.
|
Make sure that the connector is plugged in properly.
|
|
