Kia Rio: Interior Trim / Rear Transverse Trim

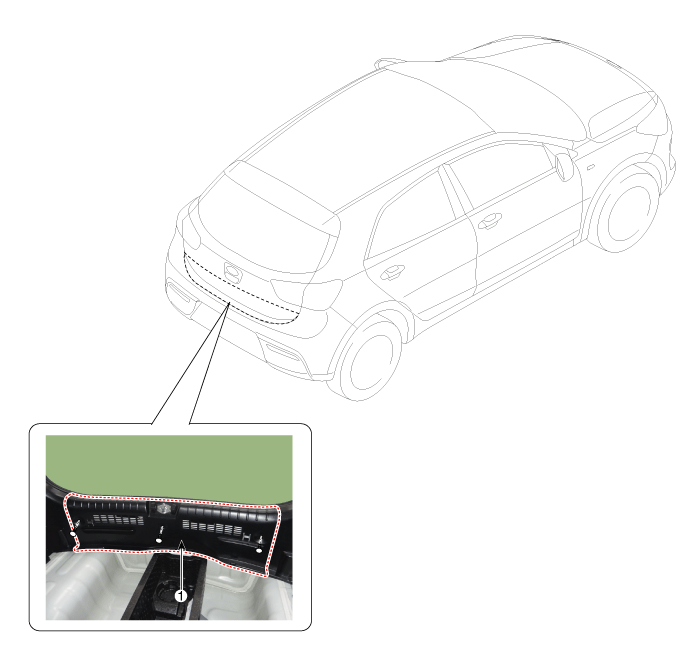

Components and components location
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the luggage covering (A).
|
| 2. |
Disconnect the tailgate weatherstrip.
|
| 3. |

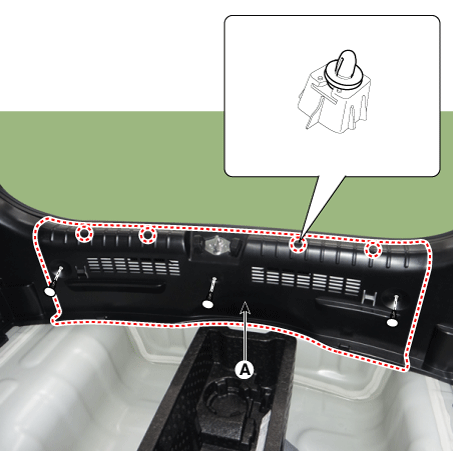

Remove the rear transverse trim (A).
|
| 4. |
Install in the reverse order of removal.
|
Make sure that the connector is plugged in properly.
|
|
