Kia Rio: Interior Trim / Luggage Side Trim

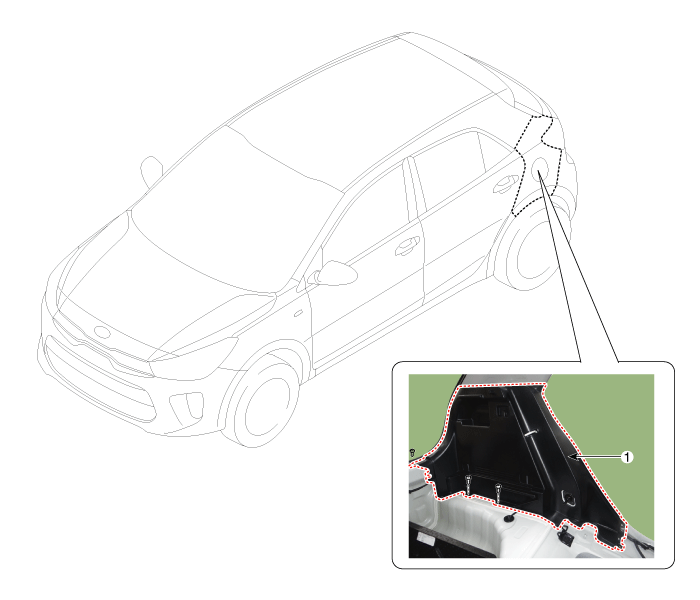

Components and components location
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the rear seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
|
| 2. |
Remove the rear door scuff trim.
(Refer to Interior Trim - "Door Scuff Trim")
|
| 3. |
Remove the rear transverse trim.
(Refer to Interior Trim - "Rear Transverse Trim")
|
| 4. |
Carefully remove the rear door fbody side weatherstrip.
|
| 5. |

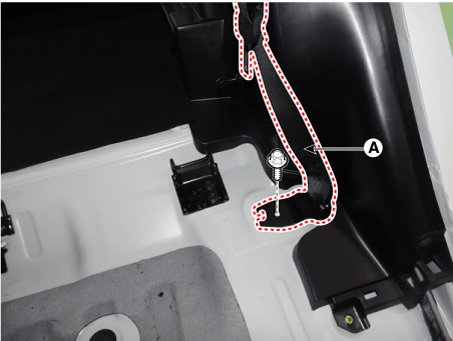

Separate the rear seat belt lower anchor (A) after loosening the mounting
bolt.
|
Tightening torque :
39.2 - 53.9 N·m (4.0 - 5.5 kgf·m, 28.8 - 39.8 lb·ft)
|
|
| 6. |

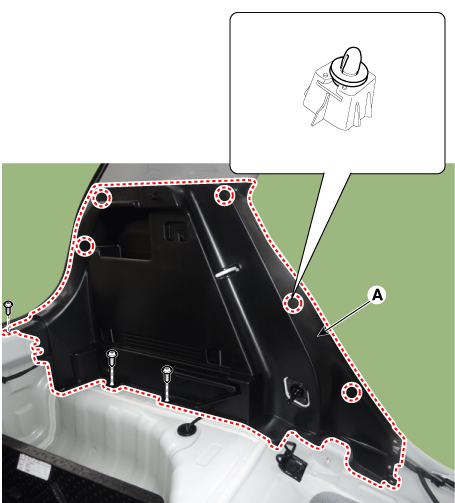

Remove the luggage side trim (A) after loosening the mounting screws.
|
| 7. |
Install in the reverse order of removal.
|
Replace any damaged clips.
|
|
