Kia Rio: Blower / Climate Control Air Filtar
Kia Rio 2017-2020 YB Service Manual / Heating,Ventilation, Air Conditioning / Blower / Climate Control Air Filtar
Description and operation
| Description |
The climate control air filter is located in the bower unit. It eliminates foreign materials and odor. The particle filter performs a role as an odor filter as well as a conventional dust filter to ensure comfortable interior environment.
Repair procedures
| Replacement |
| 1. |
Open the glove box. |
| 2. |
Remove the filter cover (A) by pressing the knob.
|
| 3. |

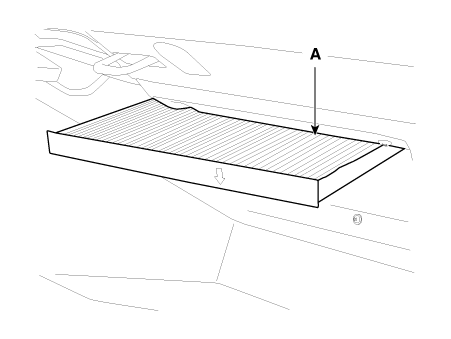

Replace the air filter (A) with a new one according to the direction of air filter.
|
| 4. |
Installation is the reverse order of removal. |
