Kia Rio: Clutch System / Clutch Tube
Components and components location
| Components |

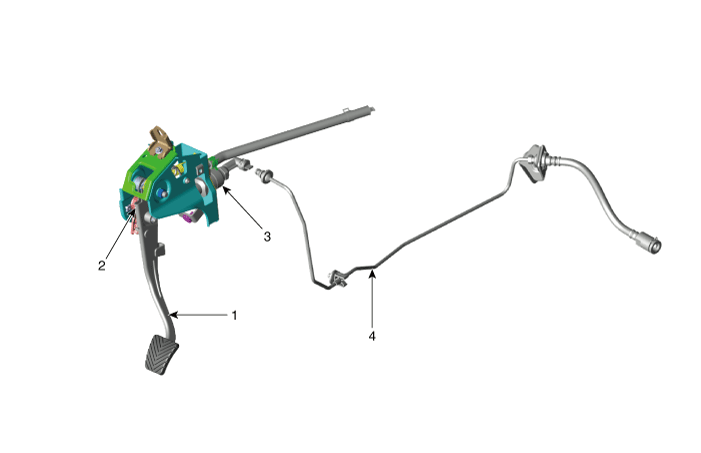

[Gasoline 1.2, 1.4]
| 1. Clutch pedal assembly 2. Ignition lock and clutch switch |
3. Master cylinder 4. Clutch tube |

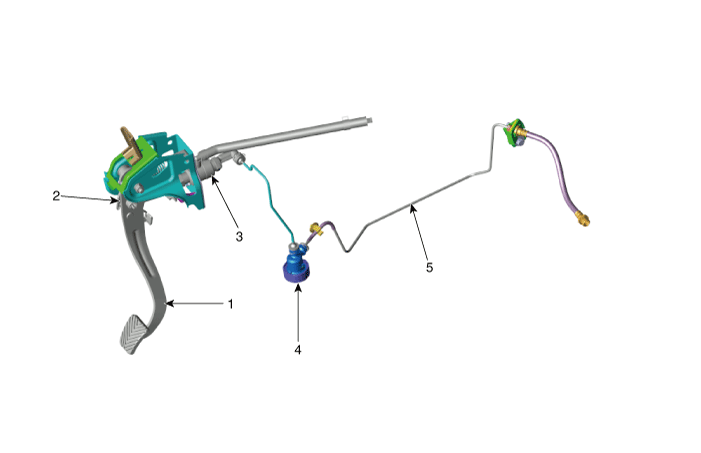

[Gasoline 1.0 T-GDI, Diesel 1.4]
| 1. Clutch pedal assembly 2. Ignition lock and clutch switch 3. Master cylinder |
4. Clutch regulator 5. Clutch tube |
Repair procedures
| Removal |
[Gasoline 1.2, 1.4]
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable. |
| 2. |
Remove the air cleaner assembly. G 1.2 MPI (Refer to Engine Mechanical System - " Air Cleaner") G 1.4 MPI (Refer to Engine Mechanical System - " Air Cleaner") |
| 3. |
Remove the battery and battery tray. G 1.2 MPI (Refer to Engine Electrical System - "Battery") G 1.4 MPI (Refer to Engine Electrical System - "Battery") |
| 4. |

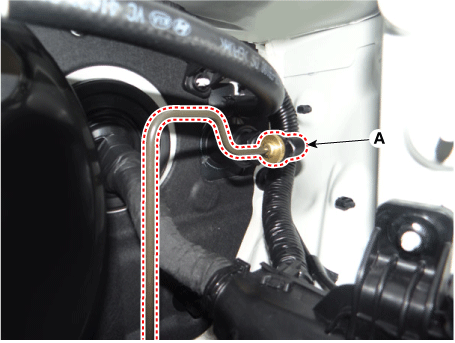

Loosen the clutch tube line bolt (A).
|
| 5. |
Disconnect the clutch tube (A).
|
| 6. |

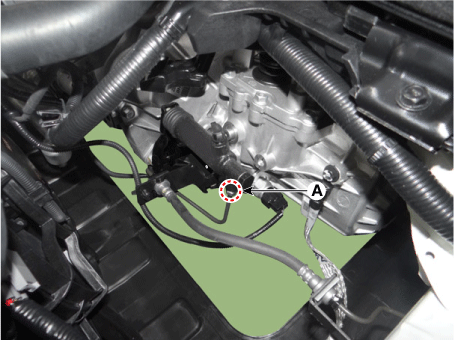

Loosen the clutch tube nut (A)
|
[Gasoline 1.0 T-GDI, Diesel 1.4]
| 1. |
Turn ignition switch OFF and disconnect the negative (-) battery cable |
| 2. |
Remove the air cleaner assembly. D 1.4 U2 TCI (Refer to Engine Mechanical System - " Air Cleaner") G 1.0 T-GDI (Refer to Engine Mechanical System - " Air Cleaner") |
| 3. |
Remove the battery and battery tray. D 1.4 U2 TCI (Refer to Engine Electrical System - "Battery") G 1.0 T-GDI (Refer to Engine Electrical System - "Battery") |
| 4. |
Remove the fuel filter. (Diesel vehicle only) D 1.4 U2 TCI (Refer to Engine Control / Fuel System - "Fuel Filter") |
| 5. |
Remove the ECM. D 1.4 U2 TCI (Refer to Engine Control / Fuel System - "Engine Control Module (ECM)") G 1.0 T-GDI (Refer to Engine Control / Fuel System - "Engine Control Module (ECM)") |
| 6. |

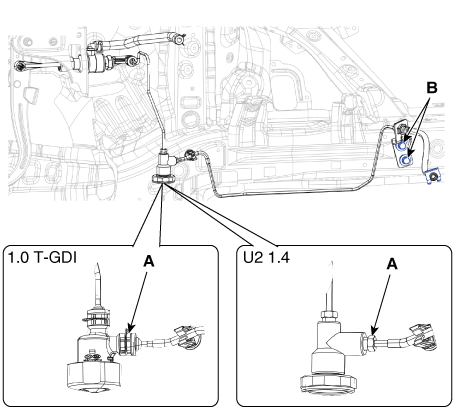

Loosen the clutch tube bracket bolts (B) and then remove the snap pin, flare nut (A) from the regulator.
|
| 7. |

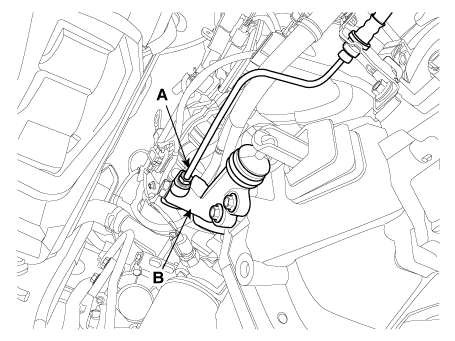

Loosen the release cylinder bolts (A) and then clutch tube nut (B) after removing release cylinder assembly (C).
|
| Installation |
When installing, O-rings of clutch tube should be replaced with a new one. |
| 1. |
Install in the reverse order of removal. |
| 2. |
After be equipped, perform bleeding air procedure after pouring the brake fluid. (Refer to Cltuch Release Cylinder - "Adjustment") |
