Kia Rio: Hydraulic System / ON/OFF Solenoid Valve (SCSV-A)
Specifications
| Specification |
|
Item |
Specification |
|
Type |
Normal open |
|
Input voltage |
12 V |
|
Coil resistance |
3.5 ± 0.2 Ω (at 25°C, 77°F) |
|
Frequency |
50 Hz |
Components and components location

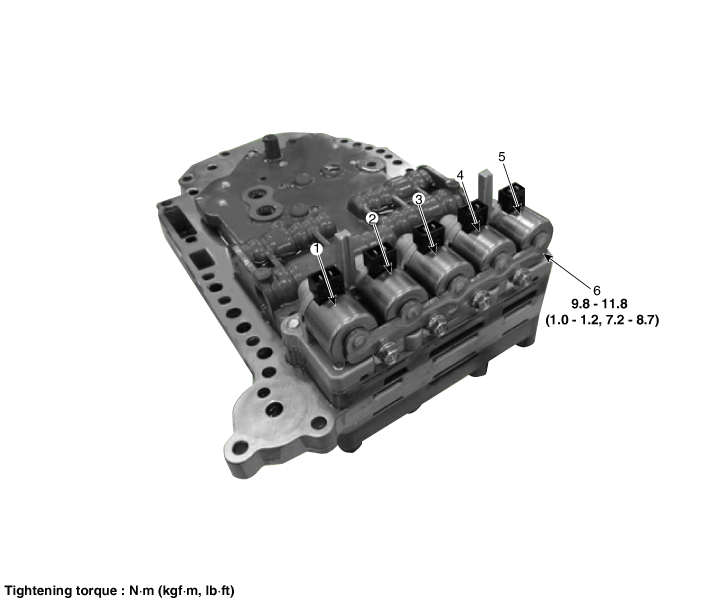

| Component Location |
| 1. Overdrive clutch control solenoid
valve (PCSV-A) 2. ON/OFF solenoid valve (SCSV-A) 3. Torque converter control solenoid valve (PCSV-D) |
4. Underdrive clutch control
solenoid valve (PCSV-C) 5. 24 brake control solenoid valve (PCSV-B) 6. Solenoid valve support bracket |
Description and operation
| Description |
| • |
ON/OFF solenoid valve is a PWM (Pulse Width Modulation) type. |
| • |
When TCM supplies current to solenoid valve, switch valve (OD, LR) is controlled by solenoid valve. |
Solenoid valve operation table
|
Range |
SCSV-A |
|
N, P |
● |
|
1 |
● |
|
2 |
|
|
3 |
|
|
4 |
|
|
R |
● |
Schematic diagrams

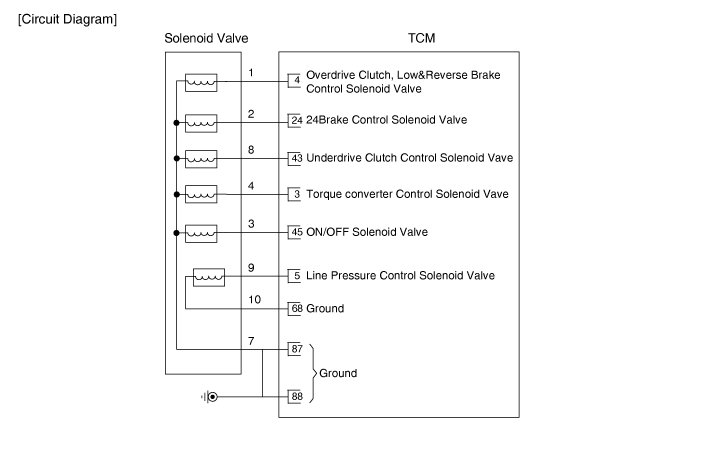

| Circuit Diagram |
Repair procedures
| Inspection |
| 1. |
Switch "OFF" ignition. |
| 2. |
Remove the air cleaner. (Refer to Engine Mechanical System - "Air cleaner") |
| 3. |

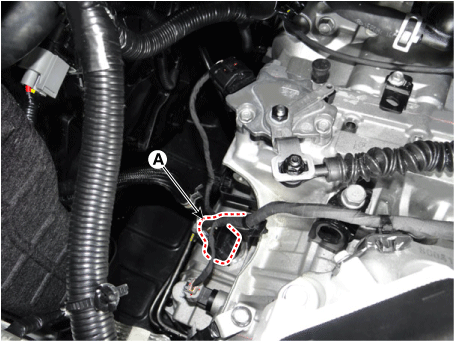

Disconnect the main connector (A).
|
| 4. |
Measure the resistance between ground terminal (7) and signal terminal (3).
|
| Removal |
| 1. |
Remove the valve body assembly (Refer to Hydraulic System - "Valve Body") |
| 2. |

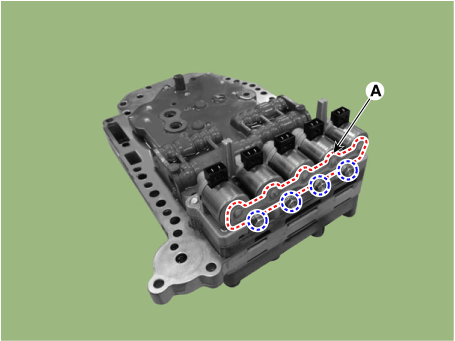

Disconnect the main harness (A).
|
| 3. |

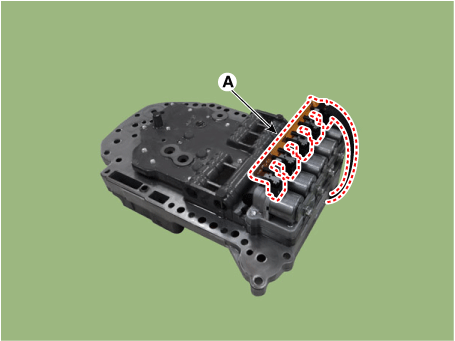

Remove solenoid valve support bracket (A) after loosening the bolts.
|
| 4. |

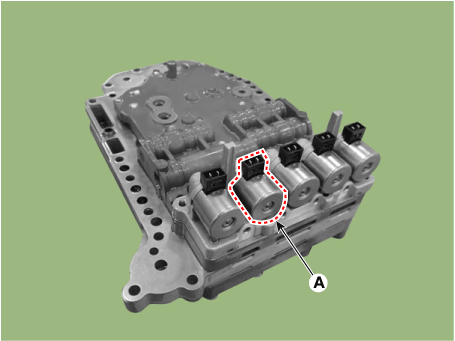

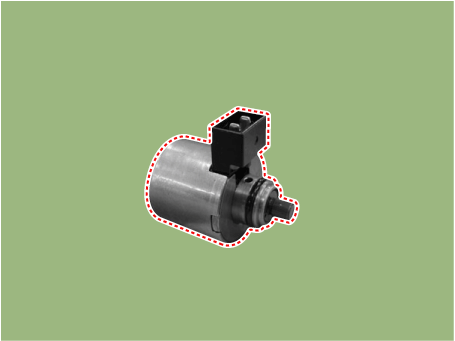

Remove the ON/OFF solenoid valve (A).
|
| Installation |
| 1. |
Install in the reverse order of removal. |

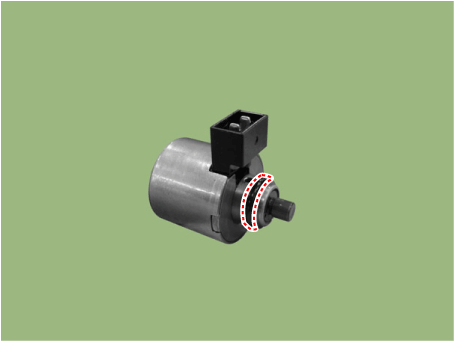

When installing, apply the ATF or petroleum jelly to the O-ring to prevent damage.
|
