Kia Rio: Automatic Transaxle Control System / Output Speed Sensor
Kia Rio 2017-2020 YB Service Manual / Automatic Transaxle System / Automatic Transaxle Control System / Output Speed Sensor
Specifications
| Specification |
|
Item |
Specification |
|
Type |
Hall effect sensor |
|
Current |
22 mA (Max) |
|
Output voltage |
High : 4.8 V - 5.2 V |
|
Low : Below 0.8 |
Description and operation
| Description |
| • |
Measures the rate of rotation of the output shaft inside the transaxle and delivers the readings to the TCM. |
| • |
The sensor provides critical input data used in feedback control, torque converter clutch control, gear setting control, line pressure control, clutch activation pressure control, and sensor fault analysis.
|
Schematic diagrams
| Circuit Diagram |
Repair procedures
| Inspection |
| 1. |
Check the signal waveform of output speed sensor using the KDS/GDS. |
Low speed
High speed
| Removal |
| 1. |
Disconnect the output speed sensor connector (A).
|
| 2. |

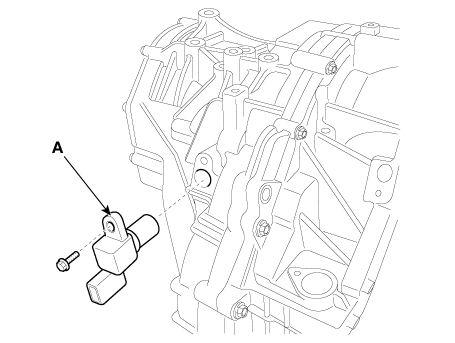

Remove the output speed sensor (A).
|
| Installation |
| 1. |
Install in the reverse order of removal. |
