Kia Rio: Rear Seat / Rear Seat Cushion Cover

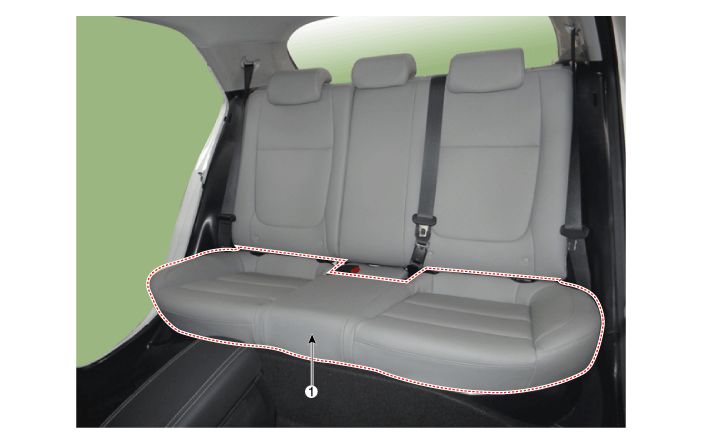

Components and components location
1. Rear seat cushion cover
|
|
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the seat assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
|
| 2. |

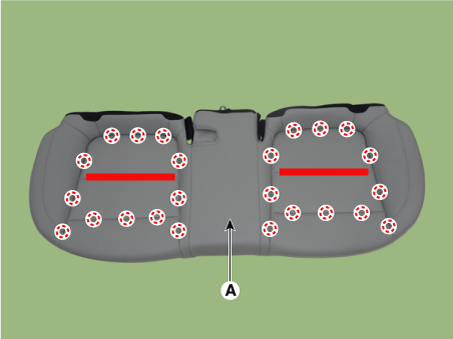

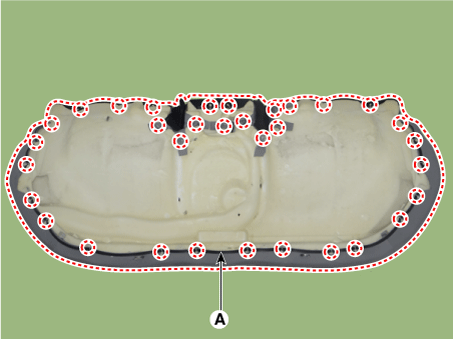

Remove the rear seat cushion cover (A) after removing the hog-ring clips
on the rear of seat cushion cover.
|
| 3. |
Install in the reverse order of removal.
| •
|
Make sure that the connectors are plugged in properly.
|
| •
|
Replace any damaged clips.
|
| •
|

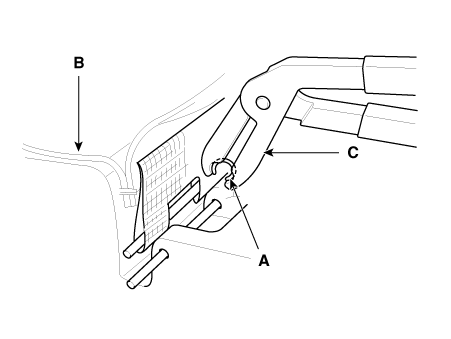

To prevent wrinkles, make sure that the material is stretched
evenly over the cover (B) before securing the hog-ring clips
(A).
|
| •
|
Replace the hog-ring clips with new ones using special
tool (C) (09880-4F000).
|
|
|
