Kia Rio: Body (Interior and Exterior) / Rear Seat

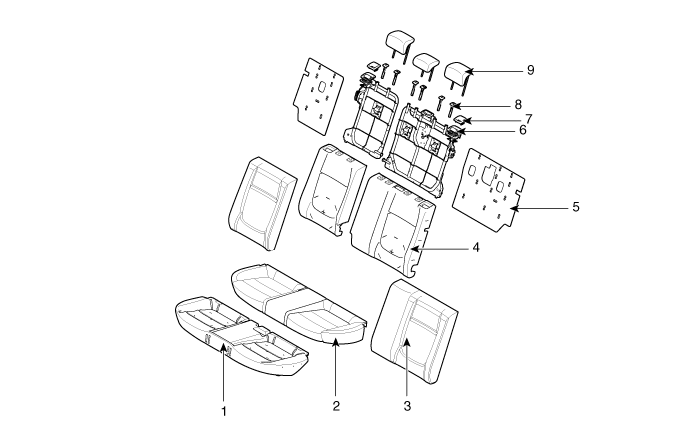

Components and components location
| Components |
| 1. Rear seat cushion pad 2. Rear seat cushion covering 3. Rear seat back covering 4. Rear seat back pad 5. Rear seat back board |
6. Rear seat back frame 7. Rear seat back bezel 8. Rear seat headrest guide 9. Rear seat headrest |
Rear Door Side Weatherstrip
Repair procedures
Replacement
1.
Loosen the rear door checker (B) mounting bolt.
Tightening torque :
21.6 - 32.4 N·m (2.2 - 3.3 kgf·m,15.9 - 2 ...
Rear Seat Assembly
Components and components location
Component Location
1. Rear seat cushion assembly
2. Rear seat back assembly
Repair procedures
Replacem ...
