Kia Rio: Rear Seat / Rear Seat Assembly
Components and components location

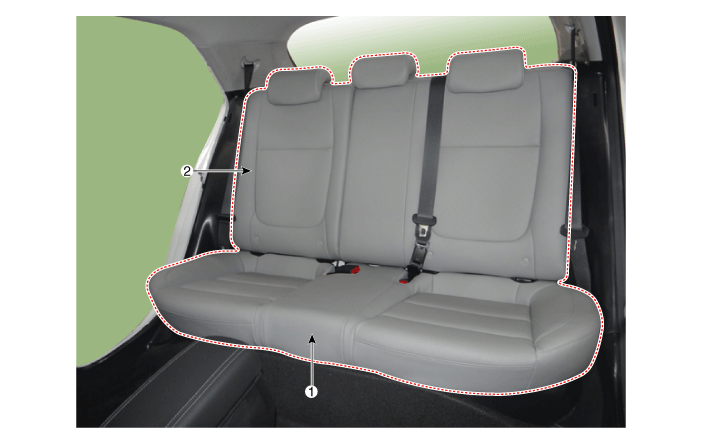

| Component Location |
| 1. Rear seat cushion assembly
|
2. Rear seat back assembly
|
Repair procedures
| Replacement |
| 1. |
Remove the rear seat cushion assembly (A) after loosening the bolt.
|
| 2. |
Disconnect the rear center seat belt (A).
|
| 3. |
Open the rear seat center hinge (A) after loosening the mounting bolt.
|
| 4. |

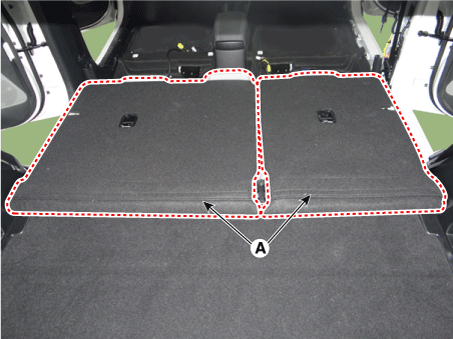

Remove the rear seat back assembly (A).
|
| 5. |
Install in the reverse order of removal. |
