Kia Rio: Lighting System / Vanity Lamp

Kia Rio 2017-2020 YB Service Manual / Body Electrical System / Lighting System / Vanity Lamp
Repair procedures
Removal
1.

Disconnect the negative (-) battery terminal.

2.

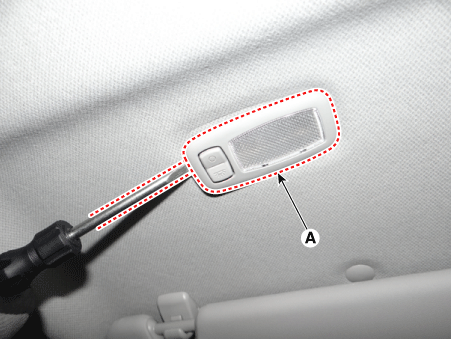

Detach the vanity lamp (A) using a flat-tip screwdriver.

3.

Disconnect the vanity lamp connector (A).

Bulb Replacement

1.

Detach the vanity lamp (A) using a flat-tip screwdriver.

2.

Remove the vanity lamp bulb (A).

Installation
1.

Connect the vanity lamp connector.

2.

Install the vanity lamp.

3.

Connect the negative (-) battery terminal.
