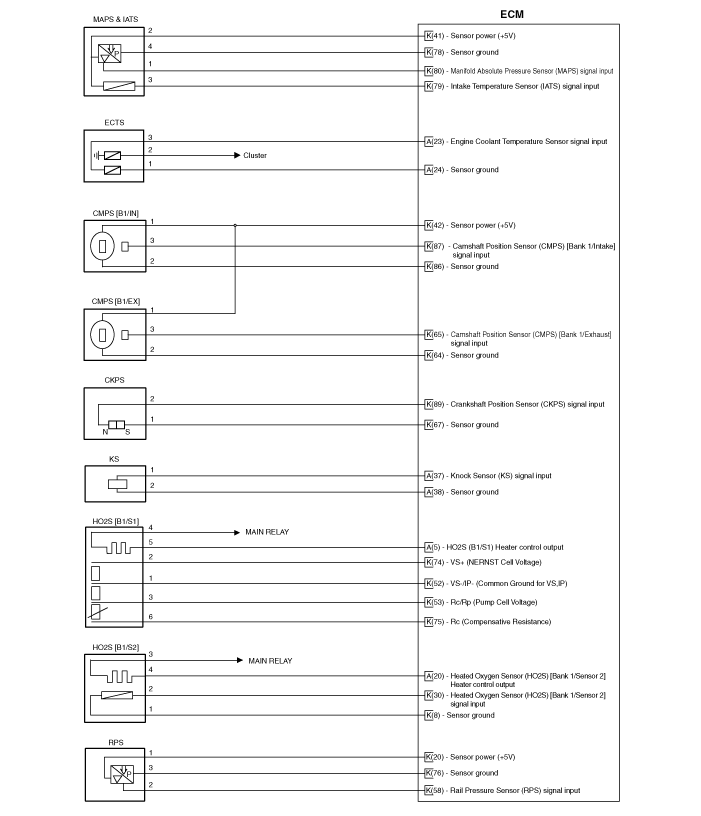

Kia Rio: Circuit Diagram

ECM Terminal And Input/Output signal [A/T]

ECM Terminal Function (A/T) Connector [EGGA-AG] Pin No. Description Connected to 1 Injector (Cylinder #1) [High] control output ...
