Kia Cee'd: Rear Bumper / Components and components location
Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Rear Bumper / Components and components location
| Components |

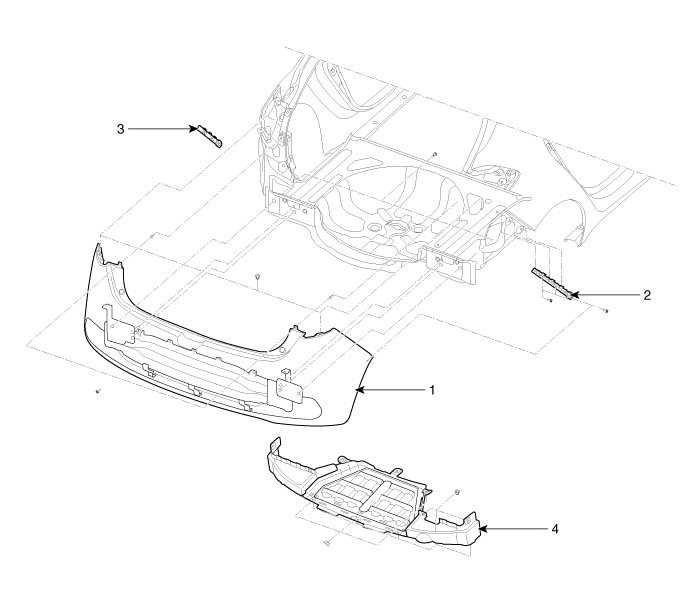

| [5Door] |
| 1. Rear bumper cover 2. Rear bumper side bracket [RH] |
3. Rear bumper side bracket [LH]
4. Rear bumper under cover |
| Components (2) |

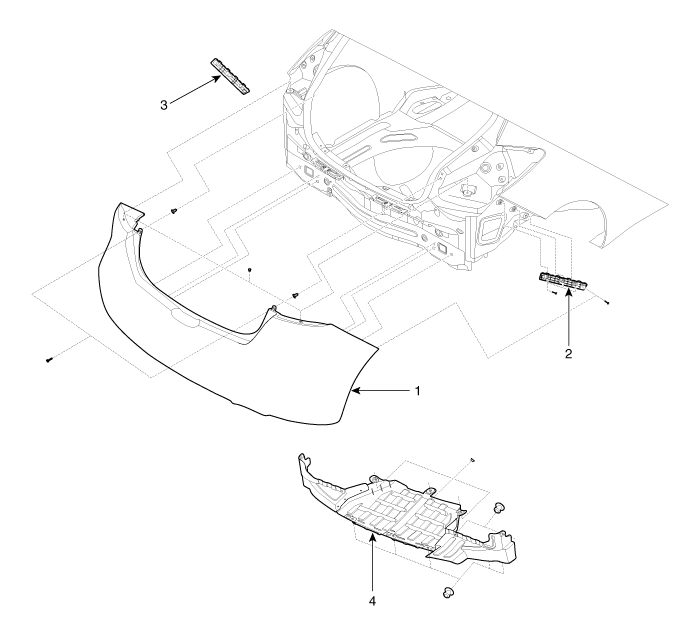

| [3Door] |
| 1. Rear bumper cover 2. Rear bumper side bracket [RH] |
3. Rear bumper side bracket [LH]
4. Rear bumper under cover |
Rear Bumper
...
Rear Bumper Cover Components and components location
Component Location
1. Rear bumper cover
...
