Kia Cee'd: Rear Bumper / Rear Bumper Cover Components and components location
Kia Cee'd JD Service Manual / Body (Interior and Exterior) / Rear Bumper / Rear Bumper Cover Components and components location

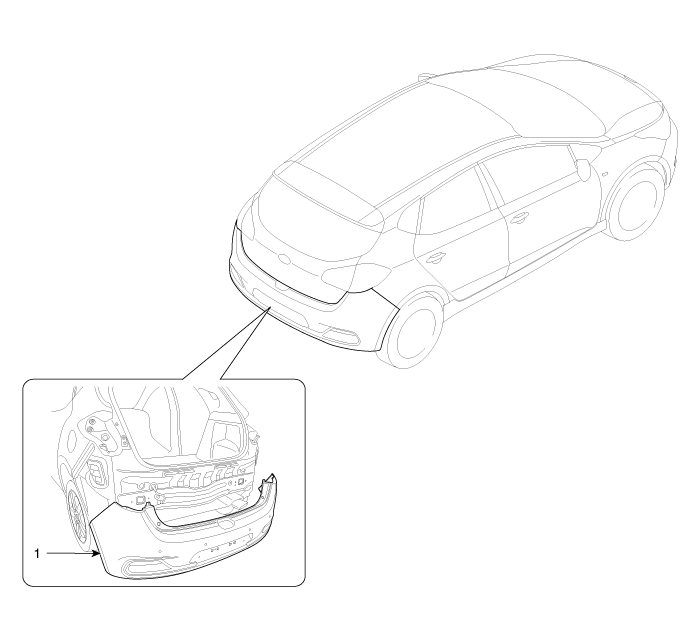

| Component Location |
| 1. Rear bumper cover |
Components and components location
Components
[5Door]
1. Rear bumper cover
2. Rear bumper side bracket [RH]
3. Rear bumper side bracket [LH]
4. Rear bumper under cover
...
Rear Bumper Cover Repair procedures
Replacement
•
Put on gloves to protect your hands.
...
