Kia Rio: Floor Console / Console Armrest

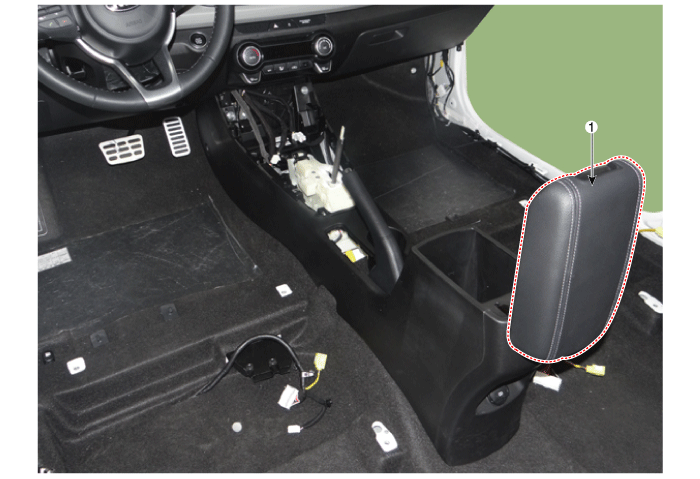

Components and components location
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Be careful not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
|
| 2. |
Remove the rear console cover.
(Refer to Floor Console - "Rear Console Cover")
|
| 3. |

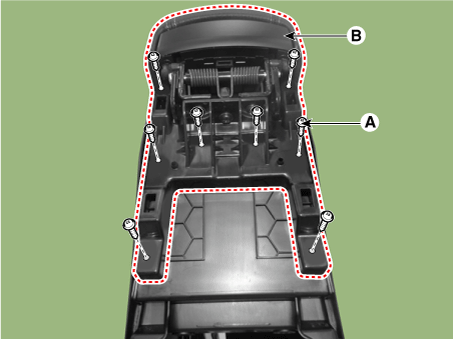

Loosen the mounting screws (A) and remove the console armrest (B).
|
| 4. |
Install in the reverse order of removal.
|
Replace any damaged clips.
|
|
