Kia Rio: Floor Console / Rear Console Cover
Components and components location
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Be careful not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the floor console assembly.
(Refer to Floor Console - "Floor Console Assembly")
|
| 2. |

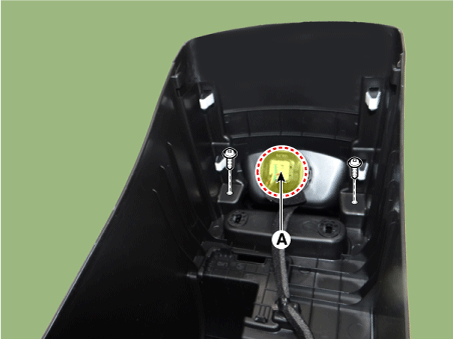

Flip over the console and disconnect the rear console connector (A) after
loosening the screws.
|
| 3. |

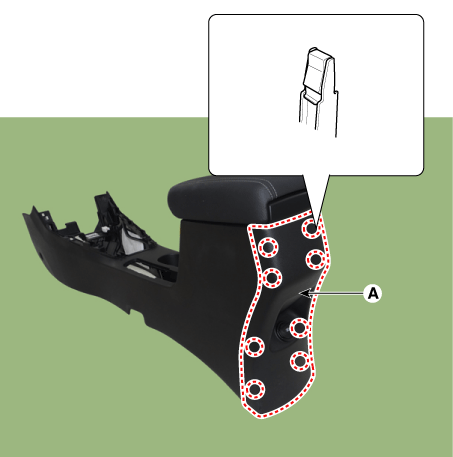

Using a remover, remove the rear console cover (A).
|
| 4. |
Install in the reverse order of removal.
| •
|
Make sure the connector is connected properly.
|
| •
|
Replace any damaged clips.
|
|
|
Components and components location

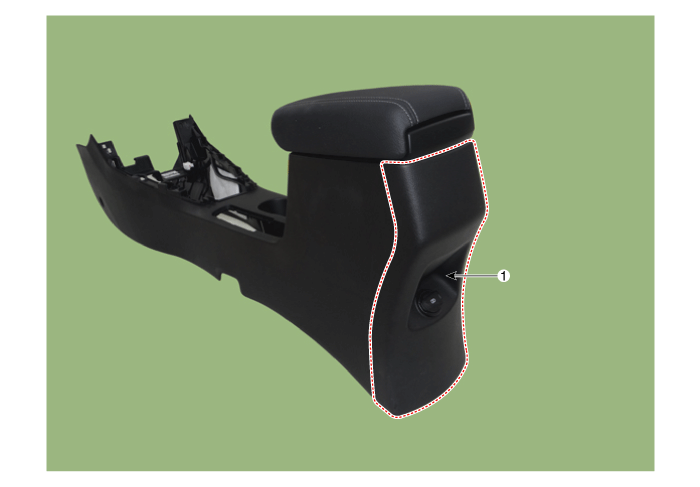

Component Location
1. Floor console assembly
Repair procedures
Replacement
...
Components and components location
Component Location
1. Console armrest
Repair procedures
Replacement
...
Other information:
Repair procedures
Replacement
