Kia Rio: Body (Interior and Exterior) / Floor Console
Kia Rio 2017-2020 YB Service Manual / Body (Interior and Exterior) / Floor Console
Components and components location
| Components |

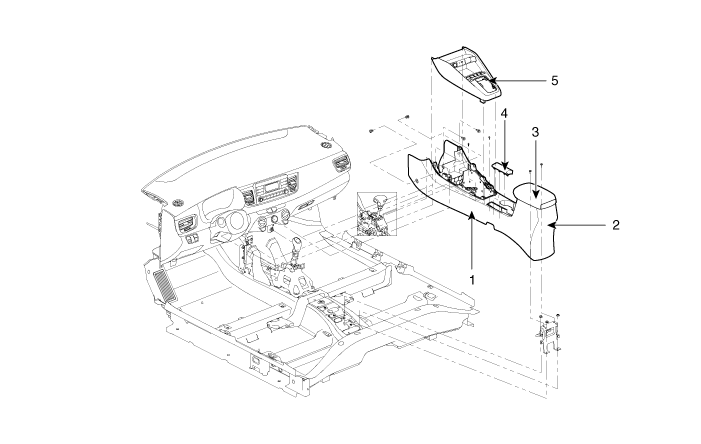

| [DLX] |
| 1. Floor console assembly 2. Rear console cover 3. Console armrest |
4. Parking brake cover 5. Front console upper cover |

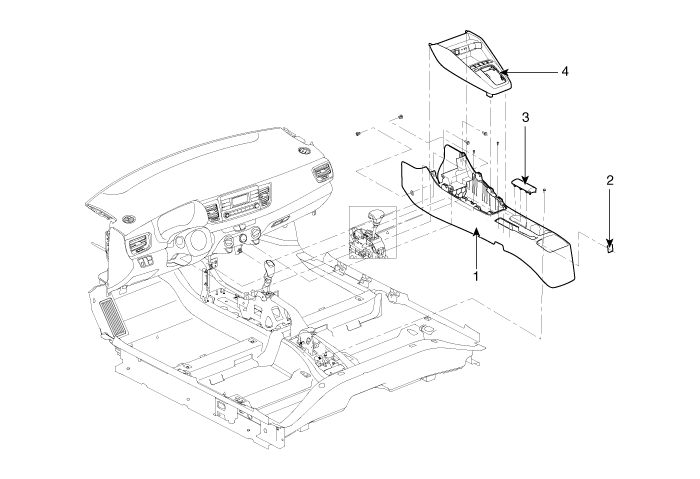

| [STD] |
| 1. Floor console assembly 2. Rear MTG cover |
3. Parking brake cover 4. Front console upper cover |
Floor Carpet
Repair procedures
Replacement
Put on gloves to protect your hands.
&nbs ...
Floor Console Assembly
Components and components location
Component Location
1. Floor console assembly
Repair procedures
Replacement
...
