Kia Rio: Front Seat / Front Seat Assembly

Kia Rio 2017-2020 YB Service Manual / Body (Interior and Exterior) / Front Seat / Front Seat Assembly
Components and components location

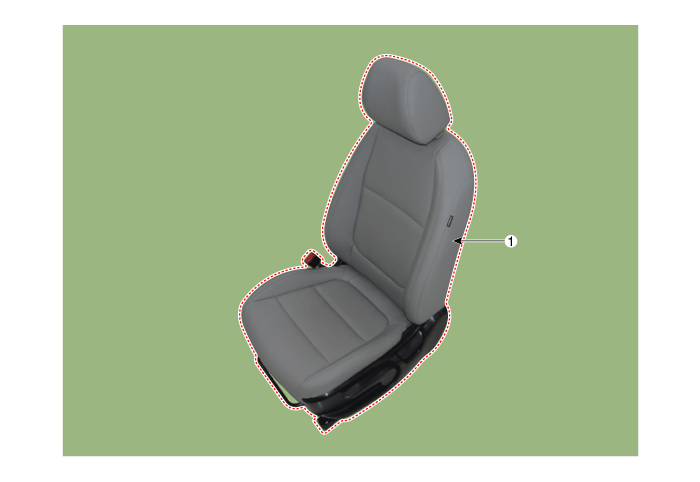

Component Location

1. Front seat assembly


Repair procedures
Replacement
1.

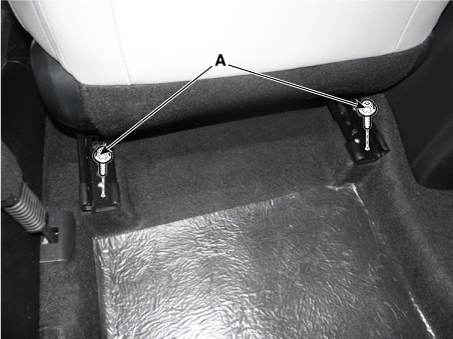

Loosen the front seat mounting bolts (A).

Tightening torque :

44.1 - 58.8 N·m (4.5 - 6.0 kgf·m, 32.5 - 43.4 lb·ft)

[Front]

[Rear]

2.

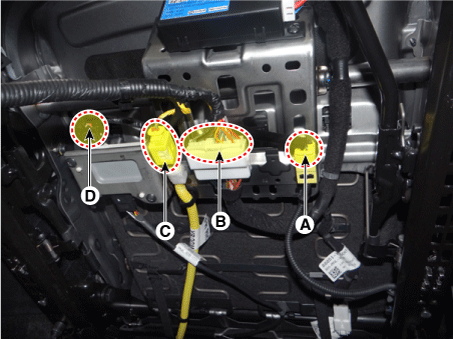

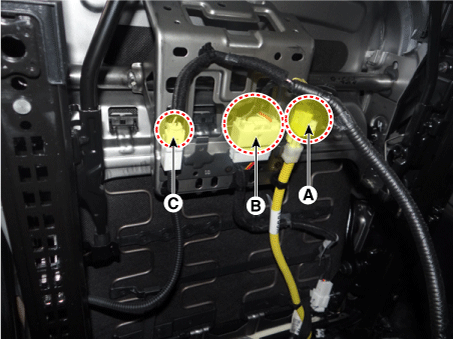

Disconnect the airbag connector (A), seat warmer & power seat switch connector (B), front seat belt buckle connector (C), heater seat unit connector (D).

[Driver's]

[Passenger's]

3.

Install in the reverse order of removal.



SEAT MOUNTING BOLT INSTALLATION PROCEDURE

Set the seat into the most rearward position. Check that each slide is locked, and then tighten the front mounting bolt temporarily.

Set the seat into the foremost position. Check that each slide is locked, and then tighten the rear mounting bolt completely.

Set the seat into the rearmost position. Check that the front mounting bolt is tightened completely.

Check that the seat operates to and fro smoothy and the locking portion locks properly.
