Kia Rio: Front Seat / Front Seat Shield Outer Cover

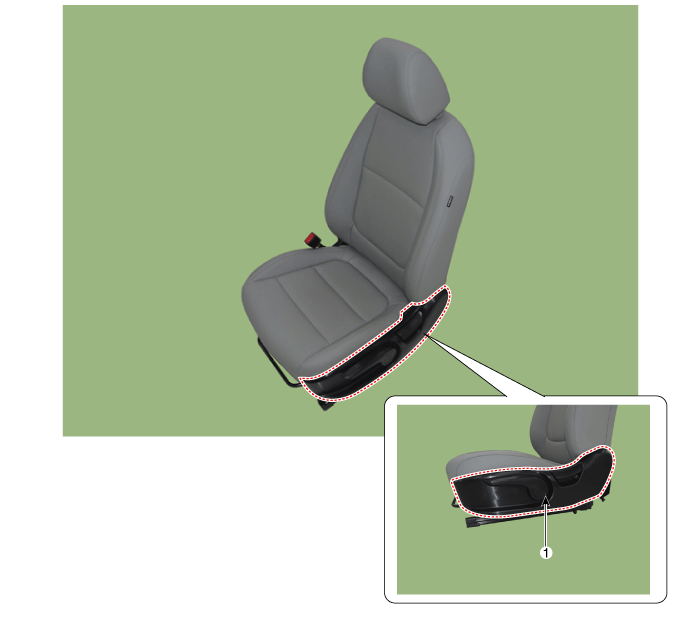

Components and components location
1. Front seat shield outer cover
|
|
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the front seat assembly.
(Refer to Front Seat - "Front Seat Assembly")
|
| 2. |

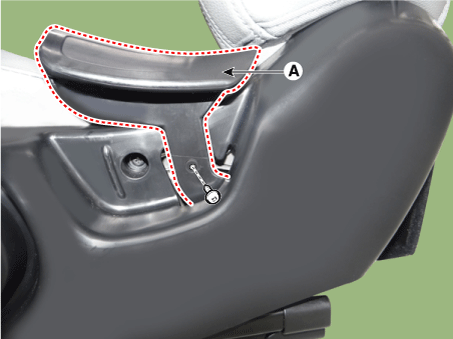

Remove the recliner handle (A) after loosening the screw.
| •
|
Correctly remove the front seat shield outer cover to
the removal procedure and direction.
|
| •
|
Be careful not to damage the mounting bracket and hook
when removing the cover.
|
|
|
| 3. |

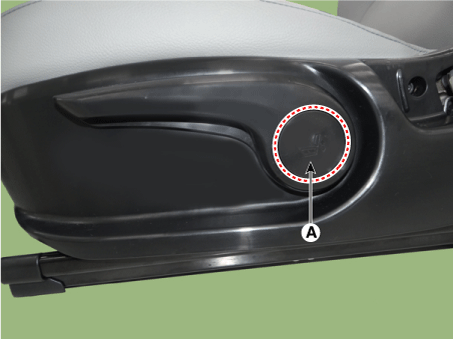

Remove the pumping lever cap (A).
|
| 4. |

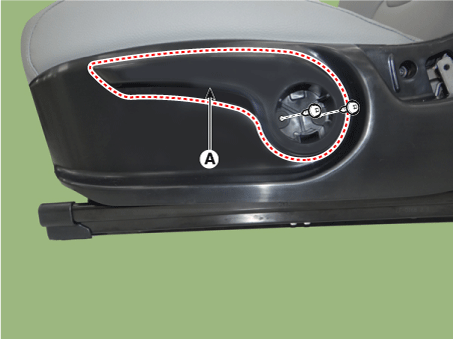

Remove the pumping lever (A).
|
| 5. |
Remove the front seat shield outer cover (A) after loosening the mounting
screws.
|
| 6. |
Install in the reverse order of removal.
| •
|
Make sure the fuel filler door locks/unlocks and opens/closes
properly.
|
| •
|
Replace any damaged clips.
|
|
|
