Kia Rio: Rear Door / Rear Door Inside Handle
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Be careful not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
|
| 2. |

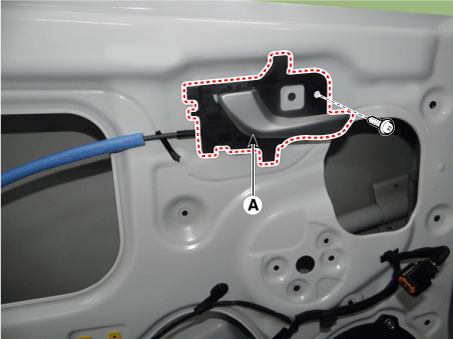

Separate the inside handle (A) after loosening the mounting screw.
|
| 3. |

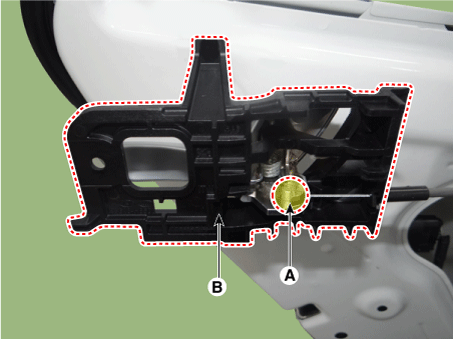

Remove the front door inside handle (B) after disconnecting the cable
(A).
|
| 4. |
Install in the reverse order of removal.
| •
|
Check that glass operation is normal.
|
| •
|
Check the damage glass channel, and replace if necessary.
|
| •
|
Adjust glass if necessary.
|
|
|
