Kia Rio: Rear Suspension System / Rear Shock Absorber
Components and components location
| Components |
| 1. Shock absorber assembly
2. Dust cover 3. Bumper stopper |
4. Insulator 5. Retainer 6. Lock nut |
Repair procedures
| Removal |
| 1. |

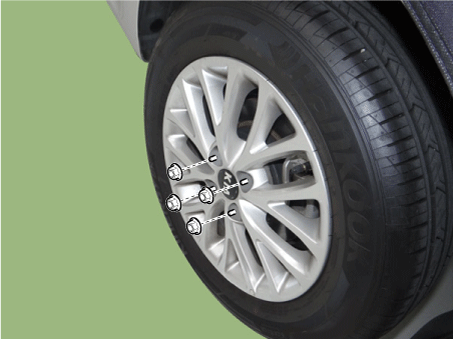

Remove wheel nuts, rear wheel and tire from rear hub.
|
| 2. |
Loosen the shock absorber lower bolt.
|
| 3. |

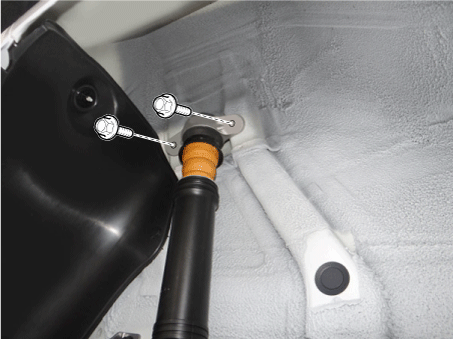

Loosen the bolts and then remove the rear shock apsorber.
|
| 4. |
Install in the reverse order of removal. |
| Inspection |
| 1. |
Check the rubber parts for wear and deterioration. |
| 2. |

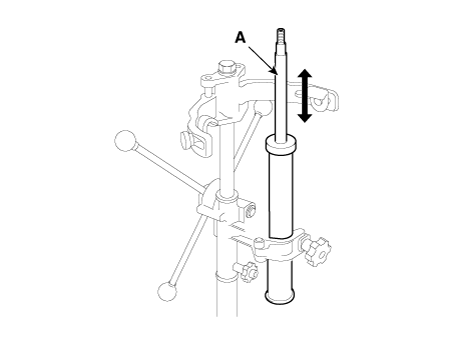

Compress and extend the piston rod (A) and check that there is no abnormal resistance or unusual sound during operation.
|
Disposal
| 1. |
Fully extend the piston rod. |
| 2. |
Drill a hole on the (A) section to remove gas from the cylinder.
|
Rear Suspension System
Components and components location
Components
[Drum Type]
1. Torsion beam axle
2. Rear spring
3. Rear drum brake disc
[Disc Type ...
Rear Coil Spring
Repair procedures
Removal
1.
Remove wheel nuts, rear wheel and tire from rear hub.
Tightening torque:
107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79 ...
