Kia Rio: Suspension System / Rear Suspension System
Kia Rio 2017-2020 YB Service Manual / Suspension System / Rear Suspension System
Components and components location
| Components |

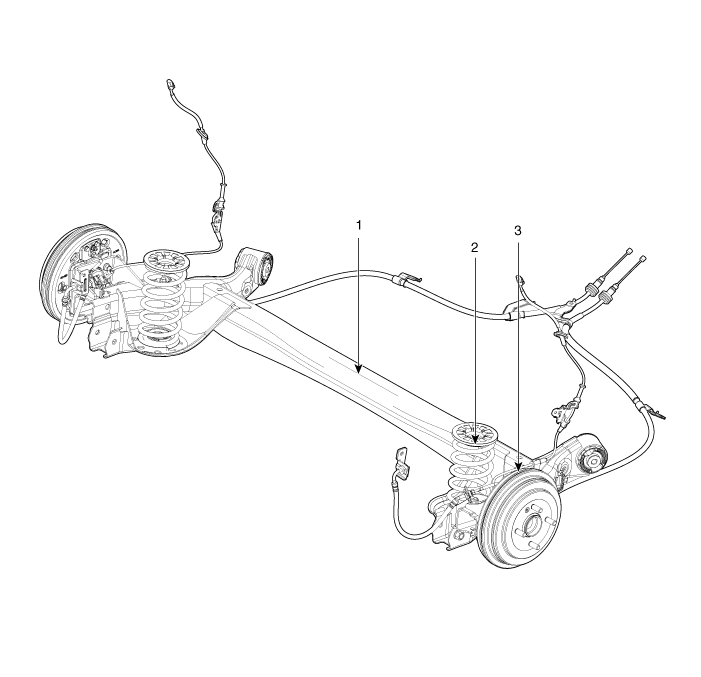

| [Drum Type] |
| 1. Torsion beam axle 2. Rear spring |
3. Rear drum brake disc |
| [Disc Type] |
| 1. Torsion beam axle 2. Rear spring |
3. Rear brake disc |
Sub Frame
Repair procedures
Removal
1.
Remove the universal joint bolt (A).
Tightening torque :
32.4 - 37.3 N·m (3.3 - 3.8 kgf·m, 23.9 - 27.5 lb·ft)
...
Rear Shock Absorber
Components and components location
Components
1. Shock absorber assembly
2. Dust cover
3. Bumper stopper
4. Insulator
5. Retainer
6. Lock nut
...
