Kia Rio: Rear Suspension System / Rear Coil Spring
Repair procedures
| 1. |

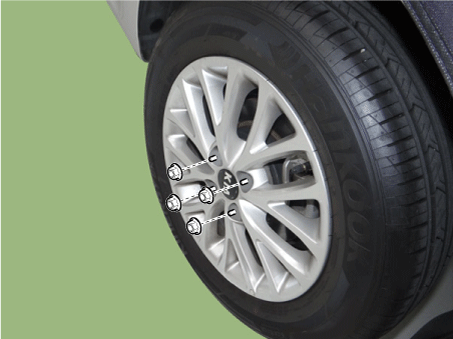

Remove wheel nuts, rear wheel and tire from rear hub.
|
Tightening torque:
107.9 - 127.5 N·m (11.0 - 13.0 kgf·m, 79.6 - 94.0 lb·ft)
|
|
Be careful not to damage to the wheel nuts when removing the
wheel and tire.
|
|
| 2. |

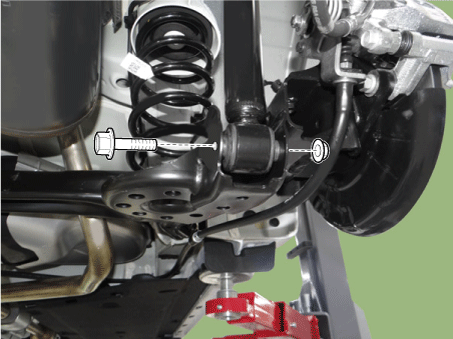

Loosen the shock absorber lower bolt.
|
Tightening torque:
98.0 - 117.6 N·m (10.0 - 12.0 kgf·m, 72.3 - 86.7 lb·ft)
|
|
Set up the transmission jack under the torsion beam in order
to remove the shock absorber in no-load condition.
|
|
| 3. |
Remove the rear coil spring.
|
| 4. |
Install in the reverse order of removal.
|
