Kia Rio: Rear Door / Rear Door Belt Outside Weatherstrip
Kia Rio 2017-2020 YB Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Belt Outside Weatherstrip
Repair procedures
| Replacement |
| 1. |
Pull down the rear door window glass to the lowest level by pressing the power window glass switch. |
| 2. |

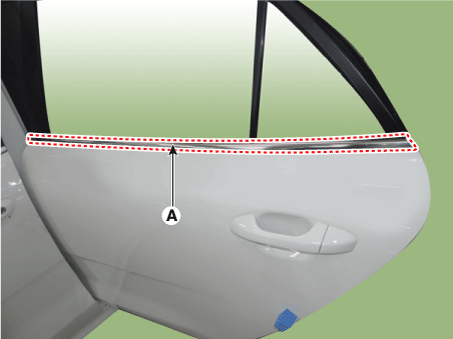

Remove the rear door belt outside weatherstrip (A) after loosening the mounting screw.
|
| 3. |
Install in the reverse order of removal.
|
