Kia Rio: Rear Door / Rear Door Latch

Kia Rio 2017-2020 YB Service Manual / Body (Interior and Exterior) / Rear Door / Rear Door Latch

Components and components location

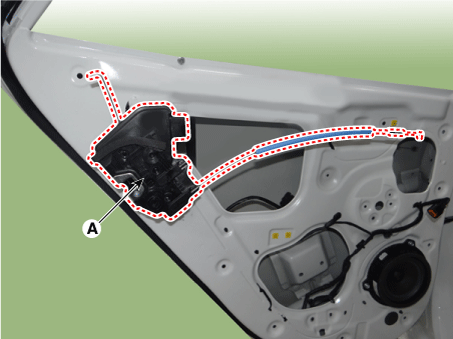

Component Location

1. Rear door latch

Repair procedures

Replacement

Put on gloves to protect your hands.

•	Use a plastic panel removal tool to remove interior trim pieces without marring the surface.

•	Be careful not to bend or scratch the trim and panels.

1.	Remove the rear door inside handle. (Refer to Rear Door - "Rear Door Inside Handle")

2.	Remove the rear door window glass. (Refer to Rear Door - "Rear Door Window Glass")

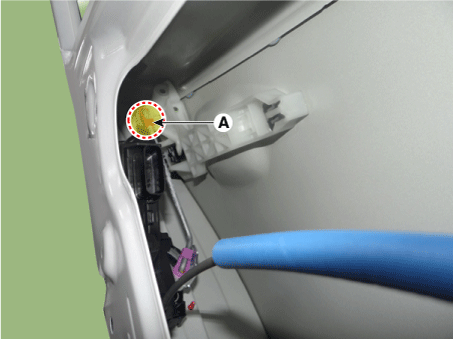

3.	Disconnect the rear door latch connector (A).

4.	Loosen the rear door latch & outside handle base mounting rod (A).

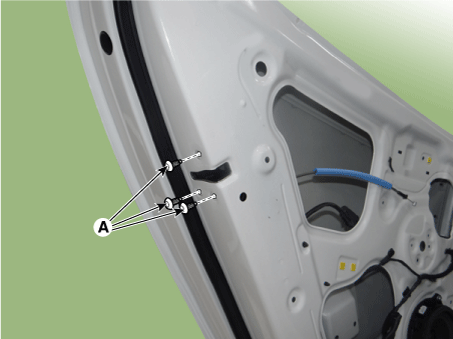

5.	Loosen the rear door latchmounting screws (A).

6.	Remove the rear door latch (A).

Install in the reverse order of removal.

•	Check that glass operation is normal.

•	Check the damage glass channel, and replace if necessary.

•	Adjust glass if necessary.
