Kia Rio: Rear Door / Rear Door Outside Handle
Components and components location
1. Rear door outside handle
|
|
Repair procedures
|
Put on gloves to protect your hands.
|
| • |
Use a plastic panel removal tool to remove interior trim pieces
without marring the surface.
|
| • |
Take care not to bend or scratch the trim and panels.
|
|
| 1. |
Remove the rear door trim.
(Refer to Rear Door - "Rear Door Trim")
|
| 2. |

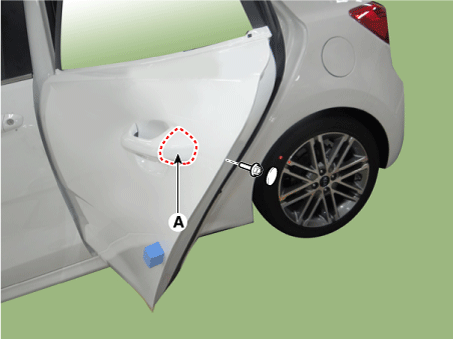

Remove the rear door outside handle cover (A) after loosening the mounting
bolt.
|
Tightening torque :
6.9 - 10.8 N·m (0.7 - 1.1 kgf·m, 5.1 - 8.0 lb·ft)
|
|
| 3. |

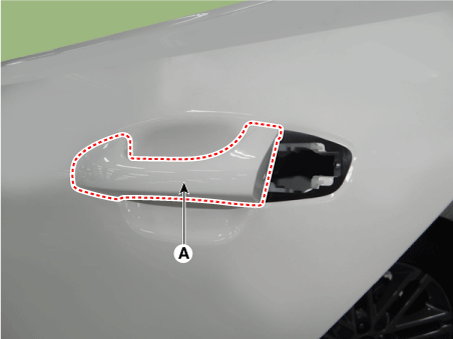

Remove the rear door outside handle (A) by sliding it rearward.
|
| 4. |
Install in the reverse order of removal.
| •
|

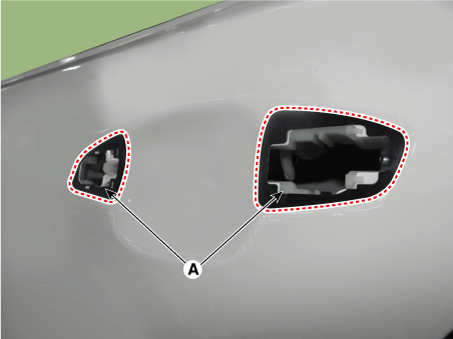

Be sure to install the outside handle pad (A) between
the outside handle and the door panel.
|
| •
|
Make sure that the connector is connected properly.
|
| •
|
Make sure that the door locks/unlocks and opens/closes
properly.
|
|
|
