Kia Rio: Manual Transaxle Components - Manual Transaxle System - Kia Rio UB 2012-2020 Service ManualKia Rio: Manual Transaxle Components

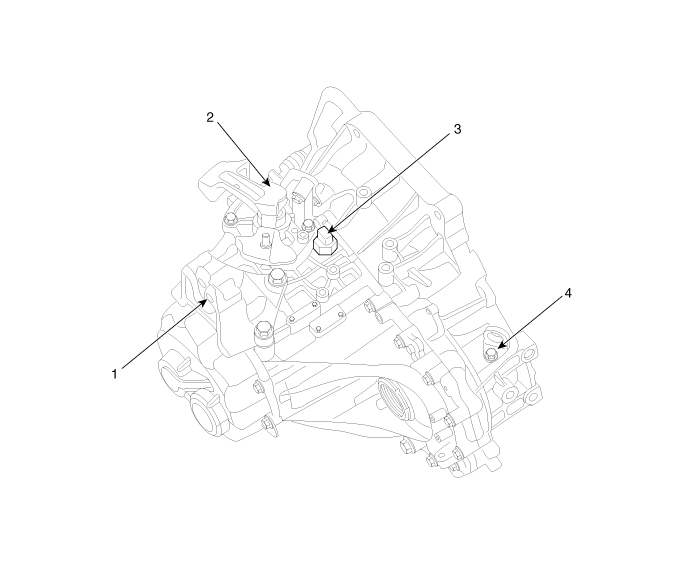

1. Transaxle support mounting bracket
2. Control shaft complete
3. Back up lamp switch
4. Vehicle speed sensor
